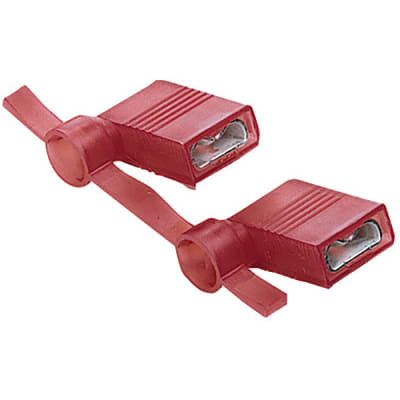

Panduit DNFR18205FIB-KD

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.187/0.205 x 0.032 (4.8/5.2 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.

Mã kho: PAK885
Tên nhà sản xuất: Panduit
12.560₫ - 12.560₫
12.560₫
12.560₫ - 12.560₫
12.560₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Terminals Terminal Kits / Disconnects: Panduit DNFR18205FIB-KD

MÔ TẢ SẢN PHẨM

The DNFR18205FIB-KD Reel Smart™ Disconnect is a continuously molded, fully insulated, right angle female disconnect with a funnel entry. The continuously molded design allows for consistent and reliable processing through Panduit applicators. The internal wire stop assures proper wire insertion leng

_THÔNG SỐ KỸ THUẬT:

Disconnect Type Female Disconnect-Right Angle
Insulation Material Nylon
Insulation Type Fully Insulated
Maximum Wire Size (AWG) #18
Minimum Wire Size (AWG) #22
Wire Strip Length (In.) 11/32
Wire Strip Length (mm) 8.7
Tab Size (In.) 0.205/0.187 x 0.032
Tab Size (mm) 5.2/4.8 x 0.8
Standards Met UL 310, CSA 22.2 No.153
Maximum Voltage (V) 600
Base Material Brass
Finish/Coating Tin-Plated
Color Code Red
Barrel Type Funnel
Flammability Rating UL94-HB
Maximum Operating Temperature (°C) 105
Maximum Operating Temperature (°F) 221
Sub Brand Reel Smart™
Maximum Metric Conductor Size (mm²) 1
Minimum Metric Conductor Size (mm²) 0.5
Maximum Wire Insulation Diameter (In.) 0.18
Maximum Wire Insulation Diameter (mm) 4.5
Overall Height (In.) 0.21
Overall Height (mm) 5.3
Overall Length (In.) 0.6
Overall Length (mm) 15.24
Overall Width (In.) 0.57
Overall Width (mm) 14.5
Tongue Angle Right Angle
Packaging Type Reel
Product Type Disconnects on a Reel
For Use With Crimp press with CA9 (CD9-9C) or CA-800EZ (CD-800-9) applicator
Maximum Voltage (kV) 0.6
Part Features • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Right angle design for use in limited space applications • Fully insulated design provides protection from electrical shorts • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310
