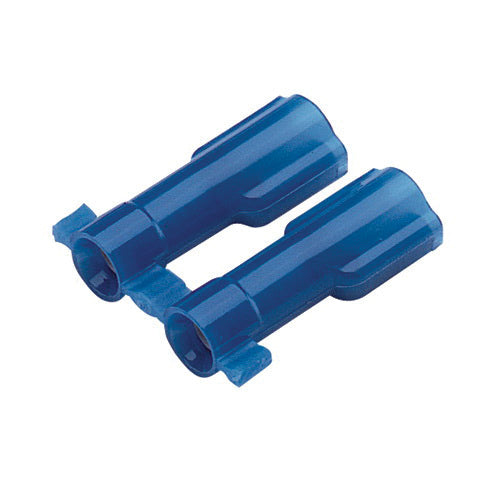

Panduit DNG14-250FB-3K

Panduit Wire Termination, [DNG14-250FB-3K]; PAI658

Mã kho: PAI658
Mã nhà sản xuất: DNG14-250FB-3K
Tên nhà sản xuất: Panduit
10.190₫ - 10.190₫
10.190₫
10.190₫ - 10.190₫
10.190₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Terminals Terminal Kits / Disconnects: Panduit DNG14-250FB-3K

MÔ TẢ SẢN PHẨM

The Supra-Grip™ female disconnect is made of brass and is tin-plated. It is fully insulated in blue nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.93" (23.6 mm) long and 0.35" (8.9 mm) wide. The disconnect has a double crimp fun

_THÔNG SỐ KỸ THUẬT:

Disconnect Type Female Disconnect-Supra Grip
Insulation Material Vinyl - Fully Insulated
Maximum Copper Conductor Size (AWG) #14
Maximum Wire Size (AWG) #14
Minimum Wire Size (AWG) #16
Minimum Copper Conductor Size (AWG) #16
Wire Strip Length (In.) 0.28
Wire Strip Length (mm) 7.1
Tab Size (In.) 0.25
Tab Size (mm) 6.3
Standards Met UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V) 600
Base Material Brass
Finish/Coating Tinned
Color Code Blue
Flammability Rating HB
Insulation Diameter (In.) 0.15
Insulation Diameter (mm) 3.9
Maximum Operating Temperature (°C) 105
Maximum Operating Temperature (°F) 221
Sub Brand Supra-Grip
Maximum Wire Insulation Diameter (In.) 0.153
Maximum Wire Insulation Diameter (mm) 3.9
Overall Height (In.) 0.25
Overall Height (mm) 6.4
Overall Length (In.) 0.93
Overall Length (mm) 23.6
Overall Width (In.) 0.35
Overall Width (mm) 8.9
Seam Type Butted
Packaging Type Reel
Product Type Disconnects on a Reel
For Use With CD-800-16 CD9-16A
Maximum Voltage (kV) 0.6
Part Features • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Flared barrel extension integrated into stamping to provide insulation grip for double crimp requirements • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher-quality connection • Mates with DNF-FIMB family • UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310, where applicable
