Panduit Panduct® PanelMax, DIN rail wiring duct (base, covers and DIN rail fasteners), 2 height, PVC, white. [DRD22WH6]; PAK909

Name: Panduit Panduct® PanelMax, DIN rail wiring duct (base, covers and DIN rail fasteners), 2 height, PVC, white. [DRD22WH6]; PAK909
Brand: Panduit
SKU: PAK909
Price: 799320.0 VND
Availability: InStock

Mã kho: PAK909

Mã nhà sản xuất: DRD22WH6

Tên nhà sản xuất: Panduit

799.320₫ - 799.320₫

799.320₫

799.320₫ - 799.320₫

799.320₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit DRD22WH6

MÔ TẢ SẢN PHẨM

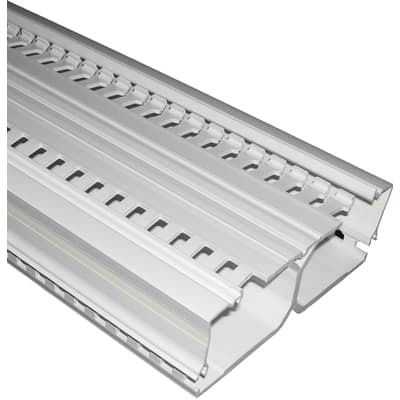

Panduct® PanelMax, DIN rail wiring duct (base, covers and DIN rail fasteners), 2 height, PVC, white.

_THÔNG SỐ KỸ THUẬT:

Application	Creating Valuable Panel Space Savings, Providing Easier Installation and Maintenance, and Improving Reliability
Product Type	Base and Cover
Color	White
Cover Part Number	DRDC2WH6
Flammability Rating	UL94 V-0
Includes	Cover
Standards Met	RoHS Compliant, UL Recognized, CE Compliant
Material	Lead-Free PVC
Mount Method	Mounting Holes
Measurement System	Metric
Wiring Duct Style	DIN Rail Wiring Duct
Wiring Duct Type	DRD
Overall Height (In.)	2.12
Overall Height (mm)	53.8
Overall Length (ft.)	6
Overall Length (m)	1.8
Overall Width (In.)	6.22
Overall Width (mm)	158
Slot Width (In.)	0.31
Slot Width (mm)	7.9
Sub Brand	PanelMax™
Part Features	2-Channel Wiring duct with a hinged and flexible cover that allows you to mount DIN Rail and components on top of the duct to maximize space. Up to 30% panel Space savings, up to 25% material cost savings, and up to 50% faster installation. Pass thru holes to shorten the wire path
