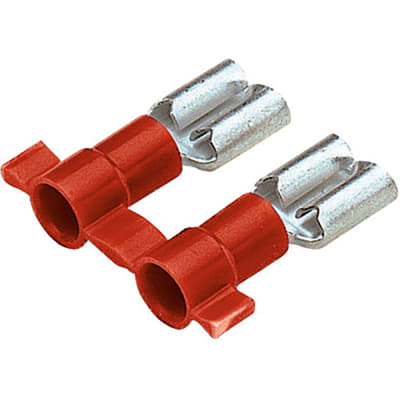

Panduit DV18-206B-3K

Panduit Wire Termination, [DV18-206B-3K]; PAI737

Mã kho: PAI737
Mã nhà sản xuất: DV18-206B-3K
Tên nhà sản xuất: Panduit
7.240₫ - 7.240₫
7.240₫
7.240₫ - 7.240₫
7.240₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Terminals Terminal Kits / Disconnects: Panduit DV18-206B-3K

MÔ TẢ SẢN PHẨM

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187/0.205 x 0.02" (4.8/5.2 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.77" (19.6 mm) long and 0.25" (6.4 mm) wide. The disconn

_THÔNG SỐ KỸ THUẬT:

Disconnect Type Female Disconnect
Insulation Material Vinyl - Barrel Insulated
Maximum Copper Conductor Size (AWG) #18
Maximum Wire Size (AWG) #18
Minimum Wire Size (AWG) #22
Minimum Copper Conductor Size (AWG) #22
Wire Strip Length (In.) 0.28
Wire Strip Length (mm) 7.1
Tab Size (In.) 0.19
Tab Size (mm) 4.8
Standards Met UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V) 600
Base Material Brass
Finish/Coating Tinned
Color Code Red
Flammability Rating V0
Insulation Diameter (In.) 0.15
Insulation Diameter (mm) 3.8
Maximum Operating Temperature (°C) 105
Maximum Operating Temperature (°F) 221
Sub Brand Reel Smart
Maximum Wire Insulation Diameter (In.) 0.15
Maximum Wire Insulation Diameter (mm) 3.8
Overall Height (In.) 0.12
Overall Height (mm) 3
Overall Length (In.) 0.77
Overall Length (mm) 19.6
Overall Width (In.) 0.25
Overall Width (mm) 6.4
Seam Type Butted
Packaging Type Reel
Product Type Disconnects on a Reel
For Use With CD-800-1 CD9-1A
Maximum Voltage (kV) 0.6
Part Features • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310, where applicable
