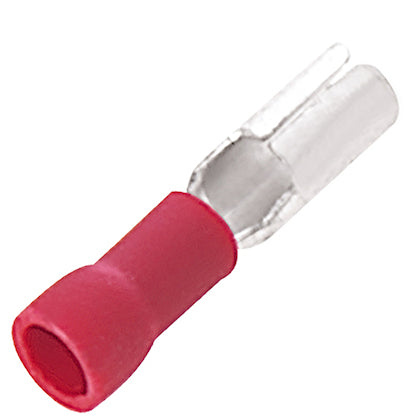

Panduit EBV18-4B-Q

Panduit Wire Termination, [EBV18-4B-Q]; PAI757

Mã kho: PAI757
Mã nhà sản xuất: EBV18-4B-Q
Tên nhà sản xuất: Panduit
0₫ - 0₫
0₫
0₫ - 0₫
0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Contractor Products / Terminals / Disconnects: Panduit EBV18-4B-Q

MÔ TẢ SẢN PHẨM

StrongHold™ Female Bullet Disconnect, vinyl insul, 22 - 16 AWG

_THÔNG SỐ KỸ THUẬT:

Disconnect Type Female Bullet
Insulation Material Vinyl - Barrel Insulated
Insulation Type Vinyl - Barrel Insulated
Maximum Copper Conductor Size (AWG) #16
Maximum Wire Size (AWG) #16
Minimum Wire Size (AWG) #22
Minimum Copper Conductor Size (AWG) #22
Wire Strip Length (In.) 0.28
Wire Strip Length (mm) 7.1
Standards Met cЯUus, E466810
Maximum Voltage (V) 600
Base Material Copper
Finish/Coating Tin-Plated
Color Code Red
Barrel Length (In.) 0.28
Barrel Length (mm) 7
Flammability Rating NA
Maximum Operating Temperature (°C) 50
Maximum Operating Temperature (°F) 122
Sub Brand StrongHold™
Maximum Metric Conductor Size (mm²) 1.5
Minimum Metric Conductor Size (mm²) 0.5
Maximum Wire Insulation Diameter (In.) 0.15
Maximum Wire Insulation Diameter (mm) 3.7
Overall Length (In.) 0.85
Overall Length (mm) 21.5
Overall Thickness (In.) 0.16
Overall Thickness (mm) 0.4
Overall Width (In.) 0.16
Overall Width (mm) 3.9
Seam Type Butted
Packaging Type Bag
Product Type Loose Piece Disconnect
For Use With KST2000C
Maximum Voltage (kV) 0.6
