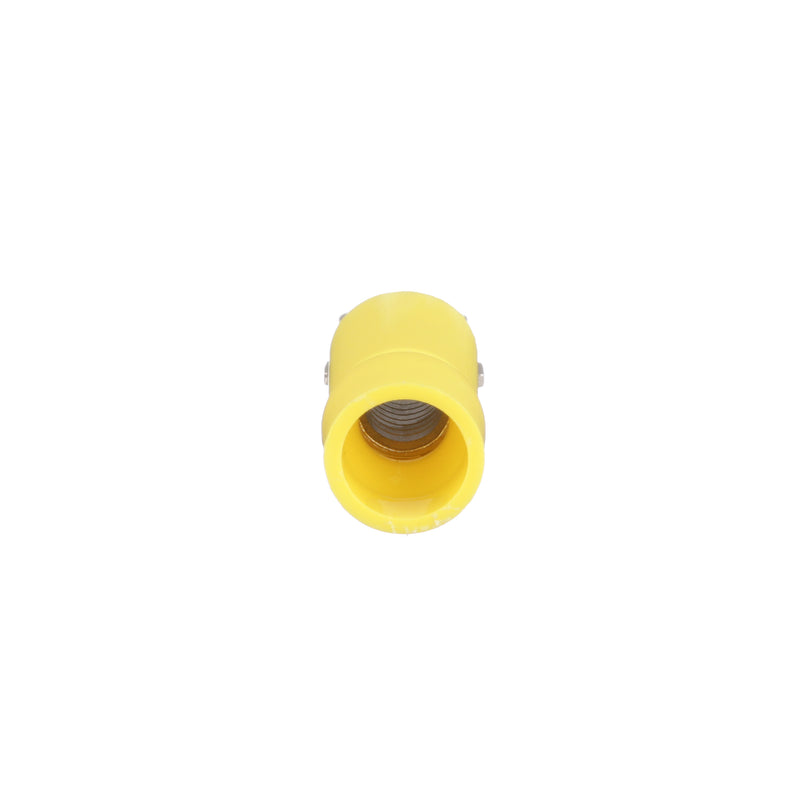

Panduit Wire Termination, [EDV10-250M-Q]; PAI762

Name: Panduit Wire Termination, [EDV10-250M-Q]; PAI762
Brand: Panduit
SKU: PAI762
Price: 7820.0 VND
Availability: InStock

Mã kho: PAI762

Mã nhà sản xuất: EDV10-250M-Q

Tên nhà sản xuất: Panduit

7.820₫ - 7.820₫

7.820₫

7.820₫ - 7.820₫

7.820₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Contractor Products / Terminals / Disconnects: Panduit EDV10-250M-Q

MÔ TẢ SẢN PHẨM

StrongHold EDV10-250M-Q Contractor Grade Vinyl Insulated Male Disconnects are a reliable and economical option that withstand a wide range of general-purpose applications. They can be easily inserted and removed from the female disconnect without the use of tools. Accommodates 12-10 AWG, 250 x .032

_THÔNG SỐ KỸ THUẬT:

Note	NA
Disconnect Type	Male Tab Disconnect
Insulation Material	Vinyl - Barrel Insulated
Insulation Type	Vinyl - Barrel Insulated
Maximum Copper Conductor Size (AWG)	#10
Maximum Wire Size (AWG)	#10
Minimum Wire Size (AWG)	#12
Minimum Copper Conductor Size (AWG)	#12
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.25
Tab Size (mm)	6.3
Standards Met	cULus, E78522
Maximum Voltage (V)	600
Base Material	Copper
Finish/Coating	Nickel-Plated
Color Code	Yellow
Flammability Rating	NA
Maximum Operating Temperature (°C)	90
Maximum Operating Temperature (°F)	194
Sub Brand	StrongHold™
Maximum Metric Conductor Size (mm²)	6
Minimum Metric Conductor Size (mm²)	4
Maximum Wire Insulation Diameter (In.)	0.23
Maximum Wire Insulation Diameter (mm)	5.9
Overall Length (In.)	0.98
Overall Length (mm)	24.9
Overall Thickness (In.)	0.03
Overall Thickness (mm)	0.8
Overall Width (In.)	0.25
Overall Width (mm)	6.3
Packaging Type	NA
Product Type	NA
For use with	CT-1550, CT-1551, CT-2300/ST, CT-2500/L
Maximum Voltage (kV)	0.6
