Panduit Wire Termination, [EV14-P47B-L]; PAI840

Name: Panduit Wire Termination, [EV14-P47B-L]; PAI840
Brand: Panduit
SKU: PAI840
Price: 7600.0 VND
Availability: InStock

Mã kho: PAI840

Mã nhà sản xuất: EV14-P47B-L

Tên nhà sản xuất: Panduit

7.600₫ - 7.600₫

7.600₫

7.600₫ - 7.600₫

7.600₫

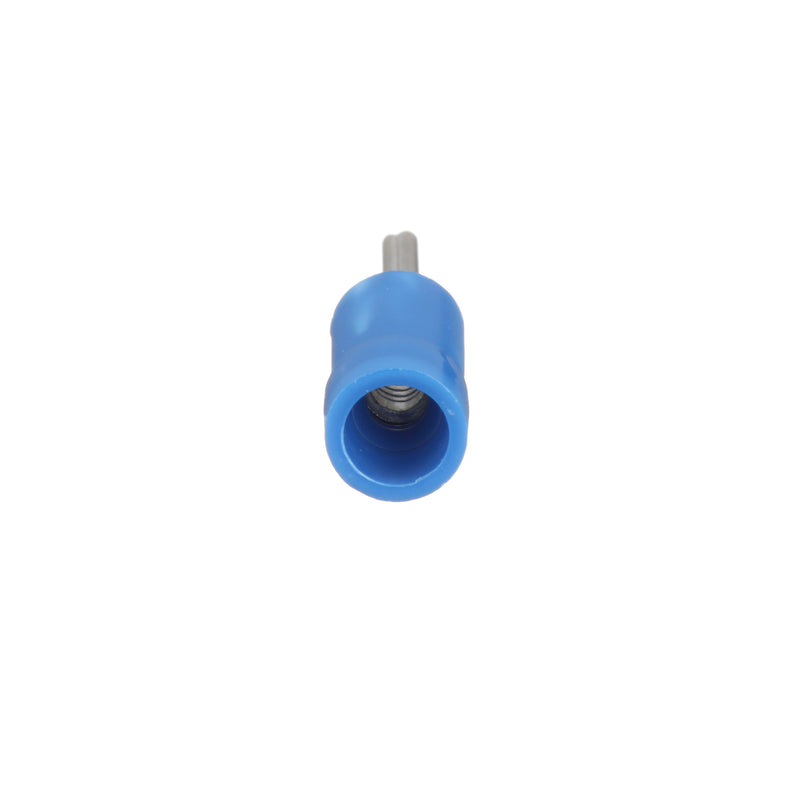

StrongHold™ Pin Terminal, vinyl insulated, 16 - 14 AWG, .49 pin length.

Note	NA
Pin Length (In.)	0.49
Pin Length (mm)	12.4
Insulation Material	Vinyl
Wire Strip Length (In.)	0.31
Wire Strip Length (mm)	7.9
Standards Met	UL
Maximum Voltage (V)	600
Maximum Voltage (kV)	0.6
Base Material	Copper
Finish/Coating	Tin-Plated
Color Code	Blue
Flammability Rating	V0
Insulation Diameter (In.)	0.17
Insulation Diameter (mm)	4.3
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
Maximum Wire Insulation Diameter (In.)	0.16
Maximum Wire Insulation Diameter (mm)	4.3
Overall Length (In.)	0.97
Overall Length (mm)	24.6
Sub Brand	StrongHold™
Product Type	Disconnect
For Use With	CT-100A, CT-260, CT-1550, CT-1551, CT-2300/ST with CD-550, CT-2500/L with CT-2550CH
Maximum Metric Conductor Size (mm²)	2.5
Minimum Metric Conductor Size (mm²)	1.5
