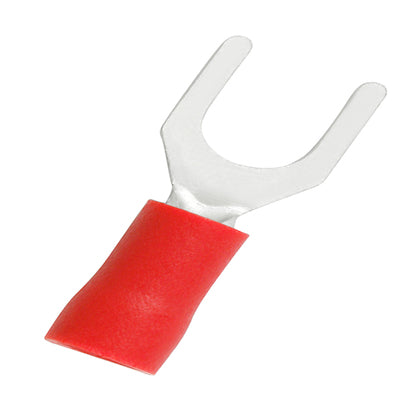

Panduit EV18-14FB-Q

Panduit Wire Termination, [EV18-14FB-Q]; PAI848

Mã kho: PAI848
Mã nhà sản xuất: EV18-14FB-Q
Tên nhà sản xuất: Panduit
6.270₫ - 6.270₫
6.270₫
6.270₫ - 6.270₫
6.270₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Contractor Products / Terminals / Fork Terminals: Panduit EV18-14FB-Q

MÔ TẢ SẢN PHẨM

StrongHold EV18-14FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 22-16 AWG, compatible with 1/4

_THÔNG SỐ KỸ THUẬT:

Fork Type Standard
Insulation Material Vinyl
Insulation Type Vinyl
Maximum Copper Conductor Size (AWG SOL) #16
Maximum Copper Conductor Size (AWG STR) #16
Maximum Copper Conductor Size (AWG) #16
Maximum Wire Size (AWG) #16
Minimum Wire Size (AWG) #22
Minimum Copper Conductor Size (AWG SOL) #22
Minimum Copper Conductor Size (AWG STR) #22
Minimum Copper Conductor Size (AWG) #22
Maximum Metric Conductor Size (mm²) 1.5
Minimum Metric Conductor Size (mm²) 0.5
Stud Size M6
Wire Strip Length (In.) 0.28
Wire Strip Length (mm) 6.8
Standards Met UL Listed 20U0, E52164
Maximum Voltage (V) 600
Maximum Voltage (kV) 0.6
Base Material Copper
Finish/Coating Tin-Plated
Color Code Red
Barrel Type Funnel
Barrel Length (In.) 0.39
Barrel Length (mm) 9.9
Insulation Diameter (In.) 0.15
Insulation Diameter (mm) 3.7
Maximum Operating Temperature (°C) 105
Maximum Operating Temperature (°F) 221
Seam Type Butted
Maximum Wire Insulation Diameter (In.) 0.15
Maximum Wire Insulation Diameter (mm) 3.7
Stud Hole Size (In.) 1/4
Stud Hole Size (mm) 6.4
Overall Length (In.) 0.83
Overall Length (mm) 21.1
Overall Width (In.) 0.37
Overall Width (mm) 9.4
Tongue Length (In.) 0.44
Tongue Length (mm) 11.2
Sub Brand StrongHold™
Tongue Thickness (In.) 0.03
Tongue Thickness (mm) 0.8
Tongue Width (In.) 0.37
Tongue Width (mm) 9.4
Packaging Type Bag
Product Type Loose Piece Forks
For Use With KST2000A
