Panduit Wire Termination, [EV8-14R-Q]; PAI872

Name: Panduit Wire Termination, [EV8-14R-Q]; PAI872
Brand: Panduit
SKU: PAI872
Price: 29600.0 VND
Availability: InStock

Mã kho: PAI872

Mã nhà sản xuất: EV8-14R-Q

Tên nhà sản xuất: Panduit

29.600₫ - 29.600₫

29.600₫

29.600₫ - 29.600₫

29.600₫

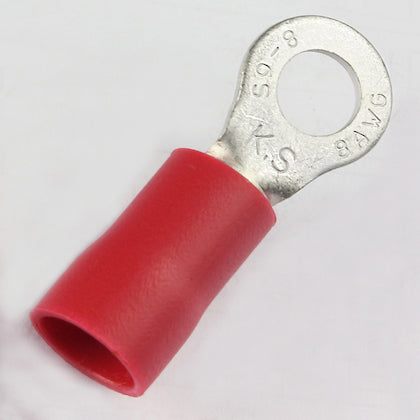

StrongHold™ Ring Terminal, vinyl insul, 8 AWG, 1/4 Stud Size

Minimum Operating Temperature (°C)	105
Minimum Operating Temperature (°F)	221
Stud Hole Size (In.)	23/100
Stud Hole Size (mm)	6
Insulation Material	Vinyl
Wire Strip Length (In.)	0.47
Wire Strip Length (mm)	11.9
Standards Met	UL Listed 20U0 E52164
Base Material	Copper
Maximum Voltage (V)	600
Maximum Voltage (kV)	0.6
Finish/Coating	Tin-Plated
Color Code	Red
Barrel Type	Standard
Barrel Length (In.)	0.33
Barrel Length (mm)	8.4
Flammability Rating	UL 20 U-0
Insulation Diameter (In.)	0.32
Insulation Diameter (mm)	8.1
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
Maximum Wire Insulation Diameter (In.)	0.32
Maximum Wire Insulation Diameter (mm)	8.1
Minimum Wire Insulation Diameter (In.)	0.25
Minimum Wire Insulation Diameter (mm)	6.4
Outer Diameter (In.)	0.47
Seam Type	Brazed
Outer Diameter (mm)	11.9
Sub Brand	StrongHold™
Overall Length (In.)	1.26
Overall Length (mm)	32
Overall Width (In.)	0.47
Overall Width (mm)	11.9
Tongue Length (In.)	0.6
Tongue Length (mm)	15.2
Tongue Thickness (In.)	0.05
Tongue Thickness (mm)	1.2
Tongue Width (In.)	0.46
Tongue Width (mm)	11.7
Packaging Type	Bag
Product Type	Ring Terminal
For Use With	KST-HDC38A
