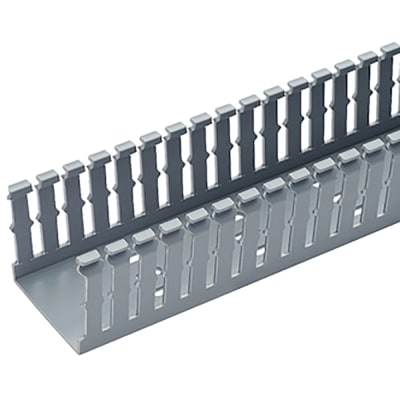

Panduit Panduct® type F narrow slot wiring duct, 1 W x 1 H, 6' length, PVC, adhesive, light gray. [F1X1LG6-A]; PAL106

Name: Panduit Panduct® type F narrow slot wiring duct, 1 W x 1 H, 6' length, PVC, adhesive, light gray. [F1X1LG6-A]; PAL106
Brand: Panduit
SKU: PAL106
Price: 177680.0 VND
Availability: InStock

Mã kho: PAL106

Mã nhà sản xuất: F1X1LG6-A

Tên nhà sản xuất: Panduit

177.680₫ - 177.680₫

177.680₫

177.680₫ - 177.680₫

177.680₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit F1X1LG6-A

MÔ TẢ SẢN PHẨM

Panduct® type F narrow slot wiring duct, 1 W x 1 H, 6' length, PVC, adhesive, light gray.

_THÔNG SỐ KỸ THUẬT:

Application	(1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation
Note	Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation
Product Type	Base Wiring Duct
Color	Light Gray
Cover Part Number	C1LG6
Flammability Rating	UL94 V-0
Standards Met	RoHS Compliant, UL Recognized, CE Compliant
Material	Lead-Free PVC
Mount Method	Mounting Holes with Adhesive
Measurement System	Metric
Wiring Duct Style	Narrow Slot Wiring Duct
Wiring Duct Type	F
Overall Height (In.)	1.13
Overall Height (mm)	28.7
Overall Length (ft.)	6
Overall Length (m)	1.8
Overall Width (In.)	1.25
Overall Width (mm)	31.8
Slot Width (In.)	0.2
Slot Width (mm)	5.1
Sub Brand	Panduct®
Part Features	Narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Double restricted slot design for retaining wires, eliminating hassle and saving time
