Panduit Panduct® type F narrow slot wiring duct, 2.5 W x 3 H, 6' length, PVC, light gray. [F2.5X3LG6]; PAL124

Name: Panduit Panduct® type F narrow slot wiring duct, 2.5 W x 3 H, 6' length, PVC, light gray. [F2.5X3LG6]; PAL124
Brand: Panduit
SKU: PAL124
Price: 270900.0 VND
Availability: InStock

Mã kho: PAL124

Mã nhà sản xuất: F2.5X3LG6

Tên nhà sản xuất: Panduit

270.900₫ - 270.900₫

270.900₫

270.900₫ - 270.900₫

270.900₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit F2.5X3LG6

MÔ TẢ SẢN PHẨM

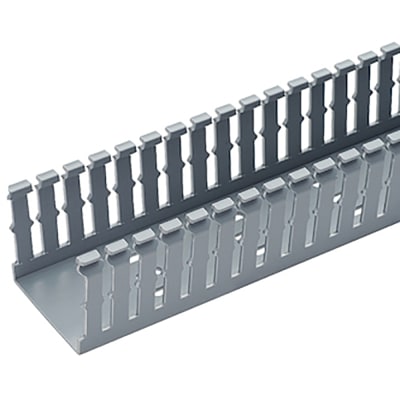

The F2.5X3LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temper

_THÔNG SỐ KỸ THUẬT:

Application	Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
Product Type	Base Wiring Duct
Color	Light Gray
Cover Part Number	C2.5LG6
Flammability Rating	UL94V-0
Includes	Base Only
Standards Met	RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
Material	Lead-Free PVC
Mount Method	Mounting Holes
Measurement System	Imperial
Wiring Duct Style	Narrow Slot Wiring Duct
Wiring Duct Type	F
Overall Height (In.)	3.12
Overall Height (mm)	79.2
Overall Length (ft.)	6
Overall Length (m)	1.8
Overall Width (In.)	2.75
Overall Width (mm)	69.9
Slot Width (In.)	0.2
Slot Width (mm)	5
Sub Brand	Panduct®
Part Features	Narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Double restricted slot design for retaining wires, eliminating hassle and saving time
