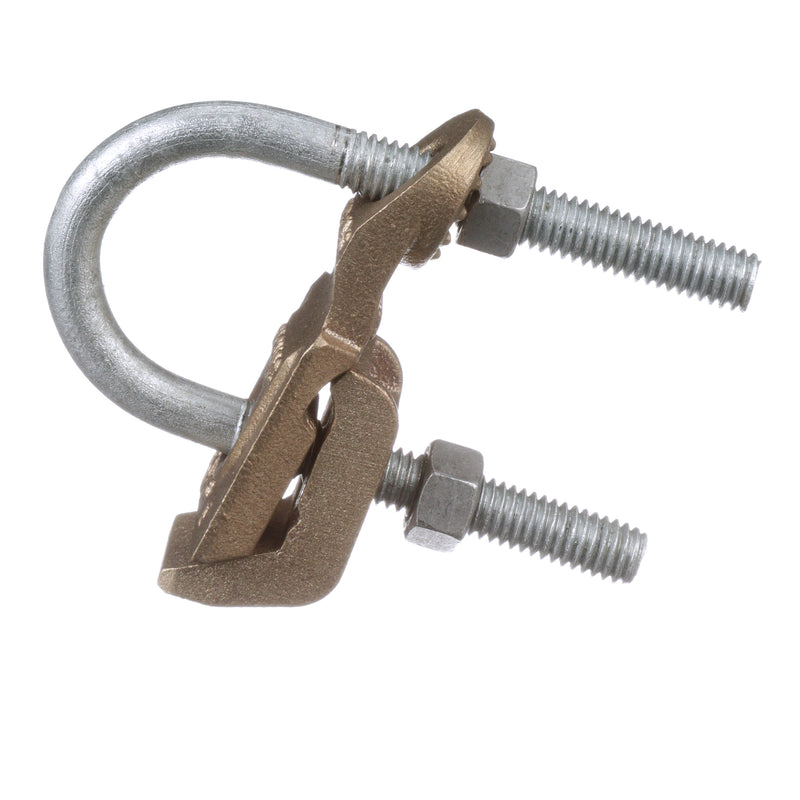

Panduit Bronze Ground Clamp Connector,Paralell or Perpindicular to Pipe, 4 AWG -4/0 AWG Str. copper wire to 1-1/4" - 2" Pipe [GAR440-3-3]; PAL562

Name: Panduit Bronze Ground Clamp Connector,Paralell or Perpindicular to Pipe, 4 AWG -4/0 AWG Str. copper wire to 1-1/4" - 2" Pipe [GAR440-3-3]; PAL562
Brand: Panduit
SKU: PAL562
Availability: InStock

Mã kho: PAL562

Mã nhà sản xuất: GAR440-3-3

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GAR440-3-3

MÔ TẢ SẢN PHẨM

Bronze Ground Clamp Connector,Paralell or Perpindicular to Pipe, 4 AWG -4/0 AWG Str. copper wire to 1-1/4" - 2" Pipe

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Material	Bronze
Maximum Copper Conductor Size (AWG SOL)	NA
Maximum Copper Conductor Size (AWG STR)	NA
Maximum Copper Conductor Size (AWG)	4/0
Minimum Copper Conductor Size (AWG SOL)	NA
Minimum Copper Conductor Size (AWG STR)	NA
Minimum Copper Conductor Size (AWG)	4
Iron Pipe Size (In.)	NA
Number Of Wires	1
Overall Length (In.)	4
Overall Length (mm)	102
Overall Width (In.)	1
Overall Width (mm)	25
Overall Height (In.)	4.41
Overall Height (mm)	112
Bolt Diameter (In.)	3/8
Clamp Tightening Torque (in·lb)	180
Hex Size (In.)	9/16
Application	Utility/Ground Grid
Standards Met	cULus Listed to UL 467 for Direct Burial Grounding
Surface Treatment	NA
Note	NA
Product Type	Ground Clamp

Panduit Bronze Ground Clamp Connector,Paralell or Perpindicular to Pipe, 4 AWG -4/0 AWG Str. copper wire to 1-1/4" - 2" Pipe [GAR440-3-3]; PAL562

MÔ TẢ SẢN PHẨM

_THÔNG SỐ KỸ THUẬT:
