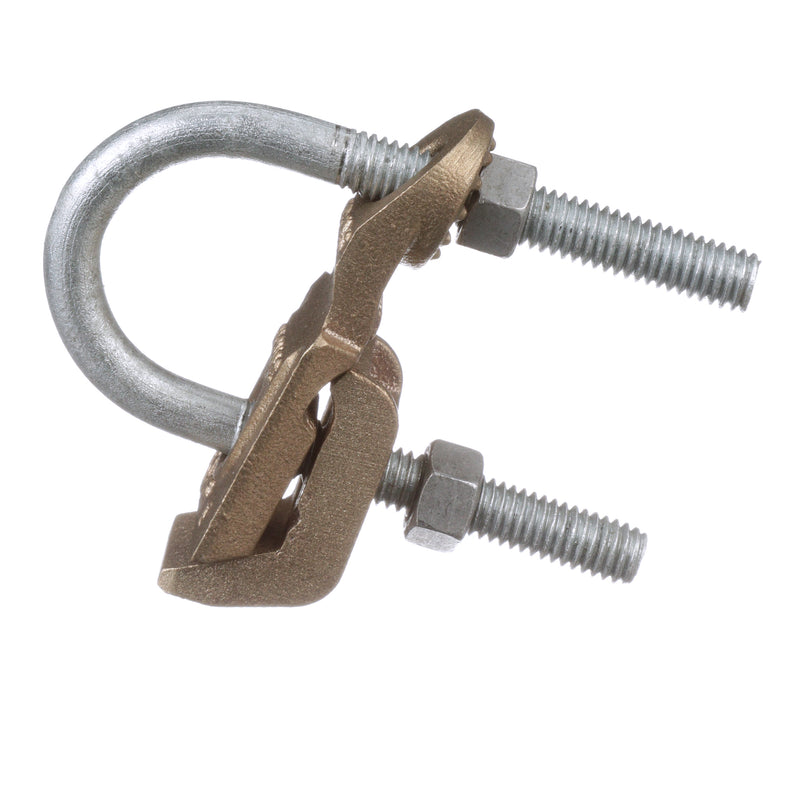

Panduit Bronze Ground Clamp Connector,Paralell or Perpindicular to Pipe, 4 AWG -4/0 AWG Str. copper wire to 4" - 5" Pipe [GAR440-5-2]; PAL563

Name: Panduit Bronze Ground Clamp Connector,Paralell or Perpindicular to Pipe, 4 AWG -4/0 AWG Str. copper wire to 4" - 5" Pipe [GAR440-5-2]; PAL563
Brand: Panduit
SKU: PAL563
Availability: InStock

Mã kho: PAL563

Mã nhà sản xuất: GAR440-5-2

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GAR440-5-2

MÔ TẢ SẢN PHẨM

Bronze Ground Clamp Connector,Paralell or Perpindicular to Pipe, 4 AWG -4/0 AWG Str. copper wire to 4" - 5" Pipe

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Material	Bronze
Maximum Copper Conductor Size (AWG SOL)	NA
Maximum Copper Conductor Size (AWG STR)	NA
Maximum Copper Conductor Size (AWG)	4/0
Minimum Copper Conductor Size (AWG SOL)	NA
Minimum Copper Conductor Size (AWG STR)	NA
Minimum Copper Conductor Size (AWG)	4
Iron Pipe Size (In.)	NA
Number Of Wires	1
Overall Length (In.)	7.19
Overall Length (mm)	183
Overall Width (In.)	1
Overall Width (mm)	25
Overall Height (In.)	7.88
Overall Height (mm)	200
Bolt Diameter (In.)	3/8
Clamp Tightening Torque (in·lb)	180
Hex Size (In.)	9/16
Application	Utility/Ground Grid
Standards Met	cULus Listed to UL 467 for Direct Burial Grounding
Surface Treatment	NA
Note	NA
Product Type	Ground Clamp
