Panduit GCC6-2-2

Panduit Grounding "6x6" Style Cross Connector, 6 Sol - 2 Str (10-35mm2) Main, 6 Sol - 2 Str (10-35mm2) Tap [GCC6-2-2]; PAL593

Mã kho: PAL593
Mã nhà sản xuất: GCC6-2-2
Tên nhà sản xuất: Panduit
0₫ - 0₫
0₫
0₫ - 0₫
0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Compression Connectors Covers / Cross Connectors: Panduit GCC6-2-2

MÔ TẢ SẢN PHẨM

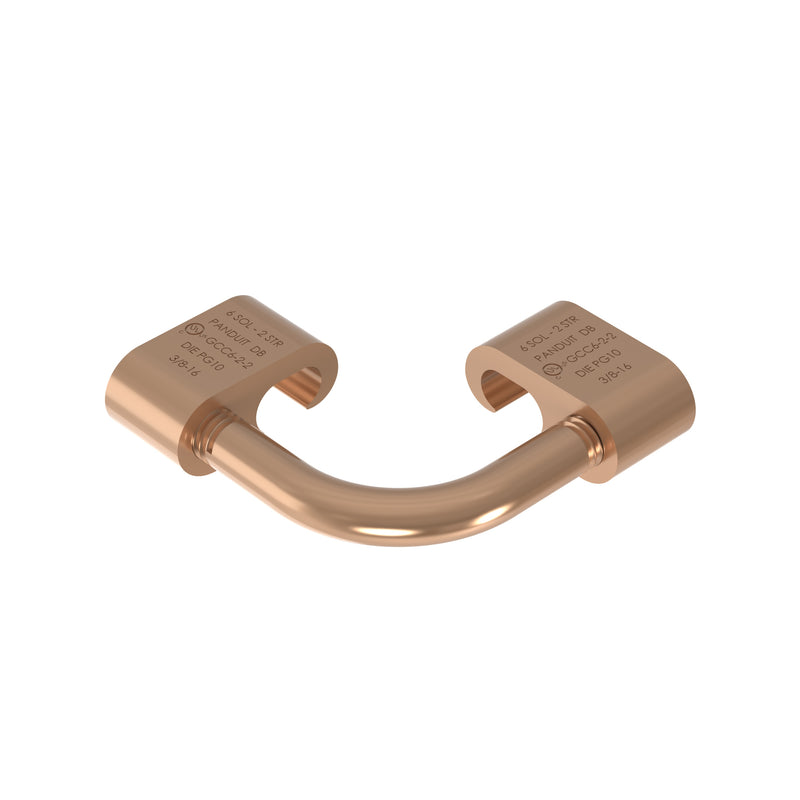

The GCC6-2-2 Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod and rebar applications. Use with copper clad, solid copper and s

_THÔNG SỐ KỸ THUẬT:

Sub Brand StructuredGround™
Connector Type Cross Connector
Overall Length (In.) 0.6
Overall Length (mm) 15.2
Material High Conductivity Copper
Overall Width (In.) 0.75
Overall Width (mm) 19
Overall Height (In.) 1.4
Overall Height (mm) 35.6
Maximum Copper Conductor Size (AWG SOL) 2
Maximum Copper Conductor Size (AWG STR) 2
Minimum Copper Conductor Size (AWG SOL) 6
Minimum Copper Conductor Size (AWG STR) 6
Panduit Die Index Number PG10
Color Code Red
Standards Met cULus Listed to UL 467 for direct burial grounding applications in earth or concrete. All parts are UL Listed to UL 486A/486B for power applications wire to wire combinations only.
Application Utility/Ground Grid
Product Type Grounding Cross Connector
