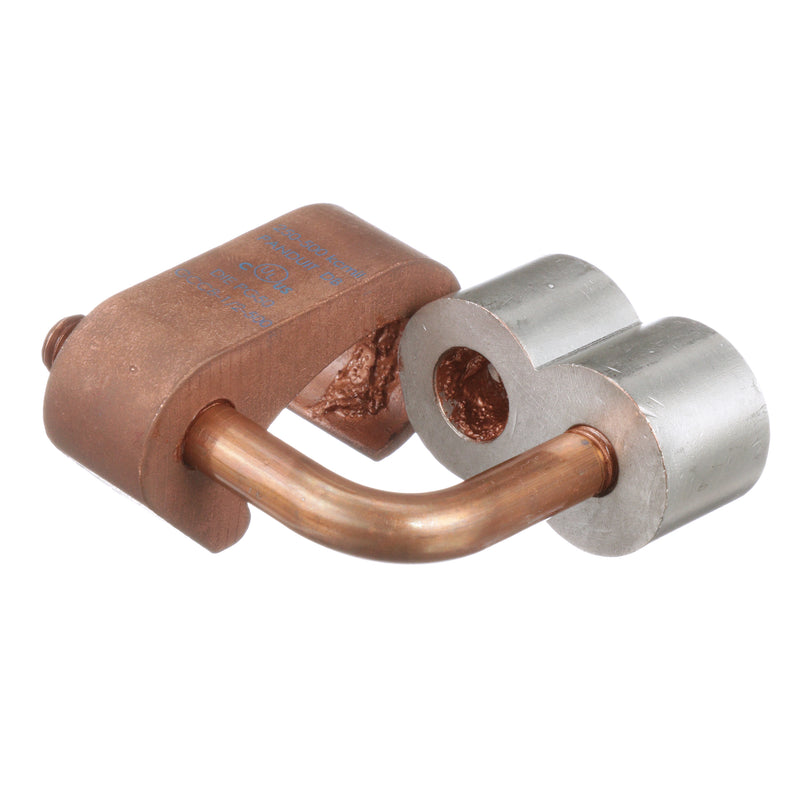

Panduit GCC8-1-250TP

Panduit Tin Plated Grounding "8x6" Style Cross Connector, 1" Rod (25.4mm), 2 Str - 250 kcmil (35-120mm2) Copper Cable [GCC8-1-250TP]; PAL605

Mã kho: PAL605
Mã nhà sản xuất: GCC8-1-250TP
Tên nhà sản xuất: Panduit
0₫ - 0₫
0₫
0₫ - 0₫
0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Compression Connectors Covers / Cross Connectors: Panduit GCC8-1-250TP

MÔ TẢ SẢN PHẨM

Tin Plated Grounding "8x6" Style Cross Connector, 1" Rod (25.4mm), 2 Str - 250 kcmil (35-120mm2) Copper Cable

_THÔNG SỐ KỸ THUẬT:

Connector Type Cross Connector
Material High Conductivity Copper
Overall Width (In.) 0.89
Overall Width (mm) 22.5
Overall Height (In.) 2.44
Overall Height (mm) 62
Maximum Copper Conductor Size (kcmil) 250
Maximum Ground Rod Size (In.) 1
Maximum Ground Rod Size (mm) 25.4
Standards Met cULus Listed to UL467 for Direct Burial Grounding
Application Utility/Ground Grid
Product Type Grounding Connector
