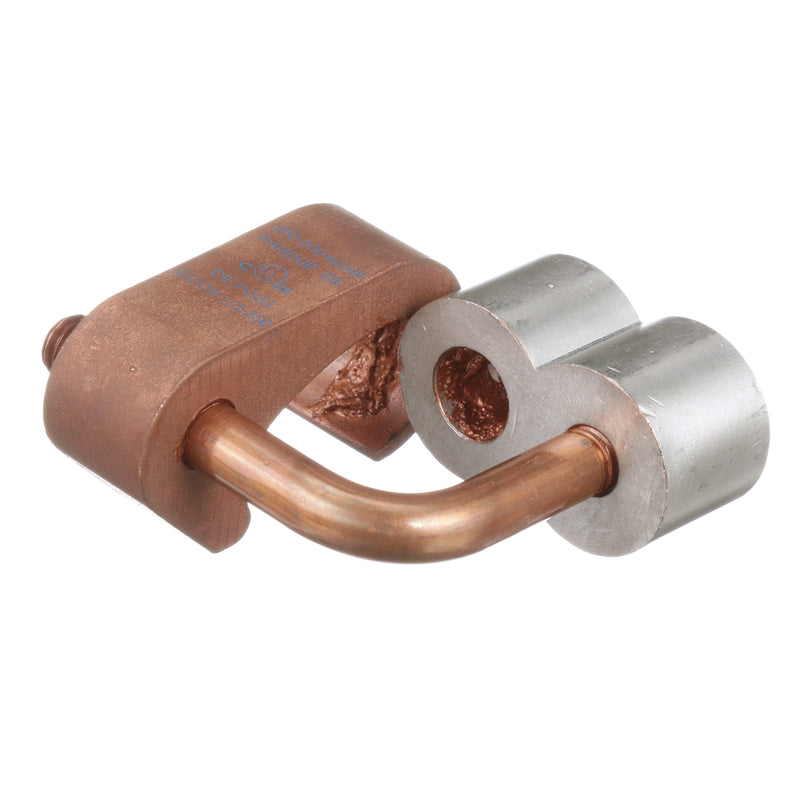

Panduit Tin Plated Grounding "8x6" Style Cross Connector, 5/8" Rod (15.9mm), 250 - 500 kcmil (120-240mm2) Copper Cable [GCC8-5/8-500TP]; PAL619

Name: Panduit Tin Plated Grounding "8x6" Style Cross Connector, 5/8" Rod (15.9mm), 250 - 500 kcmil (120-240mm2) Copper Cable [GCC8-5/8-500TP]; PAL619
Brand: Panduit
SKU: PAL619
Availability: InStock

Mã kho: PAL619

Mã nhà sản xuất: GCC8-5/8-500TP

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Compression Connectors Covers / Cross Connectors: Panduit GCC8-5/8-500TP

MÔ TẢ SẢN PHẨM

Tin Plated Grounding "8x6" Style Cross Connector, 5/8" Rod (15.9mm), 250 - 500 kcmil (120-240mm2) Copper Cable

_THÔNG SỐ KỸ THUẬT:

Connector Type	Cross Connector
Material	High Conductivity Copper
Overall Width (In.)	0.89
Overall Width (mm)	22.5
Overall Height (In.)	2.6
Overall Height (mm)	66.1
Maximum Copper Conductor Size (kcmil)	500
Minimum Copper Conductor Size (kcmil)	250
Maximum Ground Rod Size (In.)	5/8
Maximum Ground Rod Size (mm)	15.9
Standards Met	cULus Listed to UL467 for Direct Burial Grounding
Application	Utility/Ground Grid
Product Type	Grounding Connector

Panduit Tin Plated Grounding "8x6" Style Cross Connector, 5/8" Rod (15.9mm), 250 - 500 kcmil (120-240mm2) Copper Cable [GCC8-5/8-500TP]; PAL619
