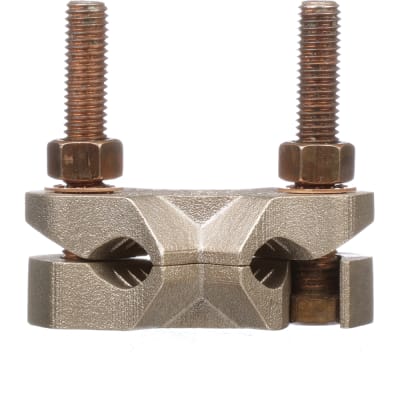

Panduit GXC250-4

Panduit Mechanical Grounding Cross Connector For Wire Ranges #8 - #4 AWG to Wire Ranges 2/0 AWG - 250 kcmil or 1/2" Rod [GXC250-4]; PAL967

Mã kho: PAL967
Mã nhà sản xuất: GXC250-4
Tên nhà sản xuất: Panduit
0₫ - 0₫
0₫
0₫ - 0₫
0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GXC250-4

MÔ TẢ SẢN PHẨM

Mechanical Grounding Cross Connector For Wire Ranges #8 - #4 AWG to Wire Ranges 2/0 AWG - 250 kcmil or 1/2" Rod

_THÔNG SỐ KỸ THUẬT:

Sub Brand StructuredGround
Material Bronze
Maximum Copper Conductor Size (AWG SOL) NA
Maximum Copper Conductor Size (AWG STR) NA
Maximum Copper Conductor Size (AWG) 2/0 -4/0 SOL & 2/0 STR-250 kcmil Run, #8 - 4 STR/SOL Tap
Maximum Copper Conductor Size (kcmil) 250
Minimum Copper Conductor Size (AWG SOL) NA
Minimum Copper Conductor Size (AWG STR) NA
Minimum Copper Conductor Size (AWG) NA
Ground Rod Size (In.) 1/2"
Number Of Wires 2
Overall Length (In.) 2.33
Overall Length (mm) 59.3
Overall Width (In.) 2.88
Overall Width (mm) 73.3
Overall Height (In.) 2.24
Overall Height (mm) 56.8
Bolt Diameter (In.) 3/8
Hex Size (In.) 9/16"
Application Utility/Ground Grid
Standards Met cULus 486 & 467 Listed for Power & Grounding, DB Rated
Product Type Grounding mechanical connector
