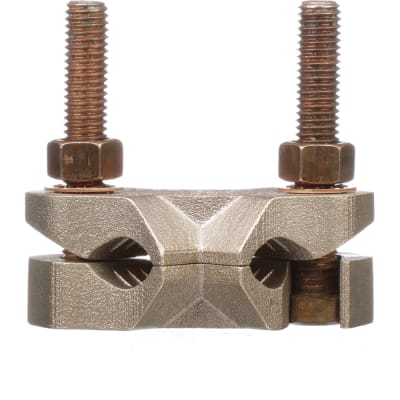

Panduit Mechanical Grounding Cross Connector For Wire Ranges #4 AWG - 2/0 AWG to Wire Ranges 300 kcmil - 500 kcmil or 3/4" Rod [GXC500-2/0]; PAL969

Name: Panduit Mechanical Grounding Cross Connector For Wire Ranges #4 AWG - 2/0 AWG to Wire Ranges 300 kcmil - 500 kcmil or 3/4" Rod [GXC500-2/0]; PAL969
Brand: Panduit
SKU: PAL969
Availability: InStock

Mã kho: PAL969

Mã nhà sản xuất: GXC500-2/0

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GXC500-2/0

MÔ TẢ SẢN PHẨM

Mechanical Grounding Cross Connector For Wire Ranges #4 AWG - 2/0 AWG to Wire Ranges 300 kcmil - 500 kcmil or 3/4" Rod

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StructuredGround
Material	Bronze
Maximum Copper Conductor Size (AWG SOL)	NA
Maximum Copper Conductor Size (AWG STR)	NA
Maximum Copper Conductor Size (AWG)	300-500 kcmil Run, #4 -2/0 STR/SOL Tap
Maximum Copper Conductor Size (kcmil)	500
Minimum Copper Conductor Size (AWG SOL)	NA
Minimum Copper Conductor Size (AWG STR)	NA
Minimum Copper Conductor Size (AWG)	NA
Ground Rod Size (In.)	3/4"
Number Of Wires	2
Overall Length (In.)	2.42
Overall Length (mm)	61.5
Overall Width (In.)	2.98
Overall Width (mm)	75.8
Overall Height (In.)	2.74
Overall Height (mm)	69.5
Bolt Diameter (In.)	3/8
Hex Size (In.)	9/16"
Application	Utility/Ground Grid
Standards Met	cULus 486 & 467 Listed for Power & Grounding, DB Rated
Product Type	Grounding mechanical connector
