Panduit GXC500-250

Panduit Mechanical Grounding Cross Connector For Wire Ranges 2/0 AWG - 250 kcmil to Wire Ranges 300 kcmil - 500 kcmil or 3/4" Rod [GXC500-250]; PAL970

Mã kho: PAL970
Mã nhà sản xuất: GXC500-250
Tên nhà sản xuất: Panduit
0₫ - 0₫
0₫
0₫ - 0₫
0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GXC500-250

MÔ TẢ SẢN PHẨM

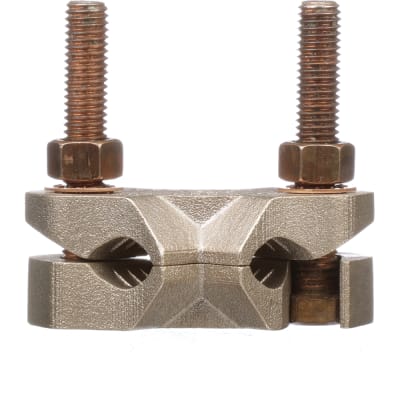

Mechanical Grounding Cross Connector For Wire Ranges 2/0 AWG - 250 kcmil to Wire Ranges 300 kcmil - 500 kcmil or 3/4" Rod

_THÔNG SỐ KỸ THUẬT:

Sub Brand StructuredGround
Material Bronze
Maximum Copper Conductor Size (AWG SOL) NA
Maximum Copper Conductor Size (AWG STR) NA
Maximum Copper Conductor Size (AWG) 300-500 kcmil Run, 2/0-4/0 SOL & 2/0 STR- 250 kcmil Tap
Maximum Copper Conductor Size (kcmil) 500
Minimum Copper Conductor Size (AWG SOL) NA
Minimum Copper Conductor Size (AWG STR) NA
Minimum Copper Conductor Size (AWG) NA
Ground Rod Size (In.) 3/4"
Number Of Wires 2
Overall Length (In.) 2.42
Overall Length (mm) 61.5
Overall Width (In.) 2.98
Overall Width (mm) 75.8
Overall Height (In.) 3.24
Overall Height (mm) 82.2
Bolt Diameter (In.) 3/8
Hex Size (In.) 9/16"
Application Utility/Ground Grid
Standards Met cULus 486 & 467 Listed for Power & Grounding, DB Rated
Product Type Grounding mechanical connector
