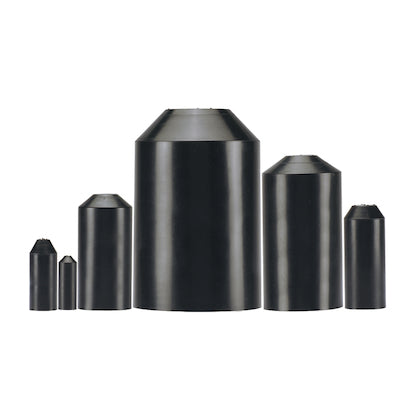

Panduit HSEC1.0-X

Panduit Heat shrink end cap adhesive lined, 1" (26mm) min. expanded I.D., adhesive lined black cross-linked polyolefin, 10 pc. package quantity. [HSEC1.0-X]; PAM192

Mã kho: PAM192
Mã nhà sản xuất: HSEC1.0-X
Tên nhà sản xuất: Panduit
259.290₫ - 259.290₫
259.290₫
259.290₫ - 259.290₫
259.290₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Heat Shrink Tubing Accessories: Panduit HSEC1.0-X

MÔ TẢ SẢN PHẨM

Heat shrink end cap adhesive lined, 1" (26mm) min. expanded I.D., adhesive lined black cross-linked polyolefin, 10 pc. package quantity.

_THÔNG SỐ KỸ THUẬT:

Product Type Heat Shrink End Cap
Application Wet Applications. Applications Include Insulating and Protecting Wires and Cables
Color Black
Flammability Rating HSECFR = Flame retardant
Material Cross-Linked Polyolefin
Shrink Ratio 2.5:1
Standards Met RoHS Compliant
Maximum Copper Conductor Size (AWG) 36617
Maximum Copper Conductor Size (kcmil) 211.6
Minimum Copper Conductor Size (AWG) 36526
Minimum Copper Conductor Size (kcmil) 105.53
Maximum Operating Temperature (°C) 125
Maximum Operating Temperature (°F) 257
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Maximum Recovered Inside Diameter (In.) 0.45
Maximum Recovered Inside Diameter (mm) 11.4
Minimum Expanded Inside Diameter (In.) 1.15
Minimum Expanded Inside Diameter (mm) 29.2
Nominal Recovered Wall Thickness (In.) 0.11
Nominal Recovered Wall Thickness (mm) 2.8
Overall Length (In.) 2.95
Overall Length (mm) 74.9
Part Features 2.5:1 Shrink ratio, wet applications. Adhesive lined inner wall seals and provides excellent protection against moisture
Overall Length (ft.) 0.233
Overall Length (m) 0.071
