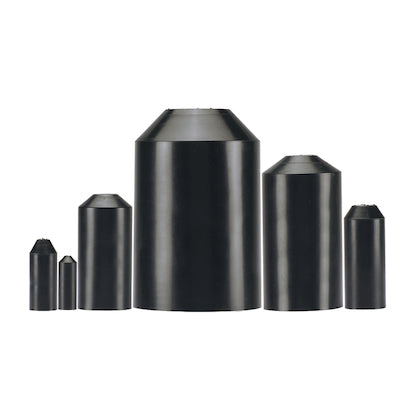

Panduit HSEC4.0-2

Panduit Heat shrink end cap adhesive lined, 4.1" (105mm) min. expanded I.D., adhesive lined black cross-linked polyolefin, 2 pc. package quantity. [HSEC4.0-2]; PAM195

Mã kho: PAM195
Mã nhà sản xuất: HSEC4.0-2
Tên nhà sản xuất: Panduit
695.580₫ - 695.580₫
695.580₫
695.580₫ - 695.580₫
695.580₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Heat Shrink Tubing Accessories: Panduit HSEC4.0-2

MÔ TẢ SẢN PHẨM

Heat shrink end cap adhesive lined, 4.1" (105mm) min. expanded I.D., adhesive lined black cross-linked polyolefin, 2 pc. package quantity.

_THÔNG SỐ KỸ THUẬT:

Product Type Heat Shrink End Cap
Application Wet Applications. Applications Include Insulating and Protecting Wires and Cables
Color Black
Flammability Rating HSECFR = Flame retardant
Material Cross-Linked Polyolefin
Shrink Ratio 2.5:1
Standards Met RoHS Compliant
Maximum Copper Conductor Size (AWG) 13.7/0
Maximum Copper Conductor Size (kcmil) 2000
Minimum Copper Conductor Size (AWG) 13.7/0
Minimum Copper Conductor Size (kcmil) 2000
Maximum Operating Temperature (°C) 125
Maximum Operating Temperature (°F) 257
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Maximum Recovered Inside Diameter (In.) 1.78
Maximum Recovered Inside Diameter (mm) 45.2
Minimum Expanded Inside Diameter (In.) 3.92
Minimum Expanded Inside Diameter (mm) 99.6
Nominal Recovered Wall Thickness (In.) 0.15
Nominal Recovered Wall Thickness (mm) 3.8
Overall Length (In.) 6.3
Overall Length (mm) 160
Overall Length (ft.) 0.448
Overall Length (m) 0.136
