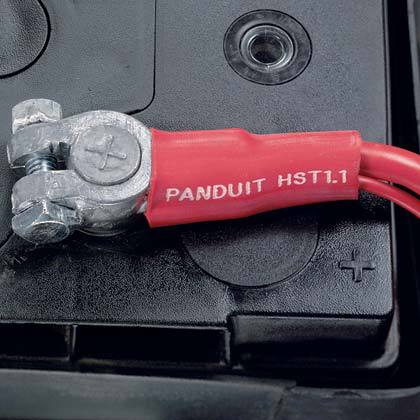

Panduit Thick wall adhesive lined, .4" (10.2mm) diameter, 3.0" (76.2mm) length, adhesive lined red cross-linked polyolefin, 25 pc. package quantity. [HST0.4-3-Q2Y]; PAM208

Name: Panduit Thick wall adhesive lined, .4" (10.2mm) diameter, 3.0" (76.2mm) length, adhesive lined red cross-linked polyolefin, 25 pc. package quantity. [HST0.4-3-Q2Y]; PAM208
Brand: Panduit
SKU: PAM208
Availability: InStock

Mã kho: PAM208

Mã nhà sản xuất: HST0.4-3-Q2Y

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Heat Shrink Tubing Accessories: Panduit HST0.4-3-Q2Y

MÔ TẢ SẢN PHẨM

Thick wall adhesive lined, .4" (10.2mm) diameter, 3.0" (76.2mm) length, adhesive lined red cross-linked polyolefin, 25 pc. package quantity.

_THÔNG SỐ KỸ THUẬT:

Note	HST0.4-3-Q2Y replaces HST0.4-3-Q2
Product Type	Heat Shrink
Color	Red
Material	Adhesive Lined Cross-Linked Polyolefin
Maximum Operating Temperature (°C)	110
Maximum Operating Temperature (°F)	230
Minimum Operating Temperature (°C)	-55
Minimum Operating Temperature (°F)	-67
Nominal Recovered Wall Thickness (In.)	0.08
Nominal Recovered Wall Thickness (mm)	2
Sub Brand	Wet-Shrink
Overall Length (In.)	3
Overall Length (ft.)	0.25
Overall Length (m)	0.076
Overall Length (mm)	76.2
Shrink Ratio	3:1
Shrink Temperature (°C)	120
Shrink Temperature (°F)	248
Maximum Recovered Inside Diameter (In.)	0.16
Maximum Recovered Inside Diameter (mm)	4.1
Minimum Expanded Inside Diameter (In.)	0.4
Minimum Expanded Inside Diameter (mm)	10.2

Panduit Thick wall adhesive lined, .4" (10.2mm) diameter, 3.0" (76.2mm) length, adhesive lined red cross-linked polyolefin, 25 pc. package quantity. [HST0.4-3-Q2Y]; PAM208
