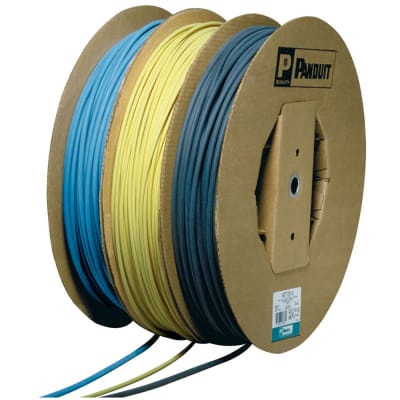

Panduit Thin-wall Heat Shrink Tubing shrinks around wires, connectors, joints and terminals when heated to protect against abrasion, fire and chemicals. Cross-link Polyolefin, 0.06”D x 100.00’L (1.6mm x 30.5m), Clear, 1pc. [HSTT06-CC]; PAM264

Name: Panduit Thin-wall Heat Shrink Tubing shrinks around wires, connectors, joints and terminals when heated to protect against abrasion, fire and chemicals. Cross-link Polyolefin, 0.06”D x 100.00’L (1.6mm x 30.5m), Clear, 1pc. [HSTT06-CC]; PAM264
Brand: Panduit
SKU: PAM264
Price: 1536740.0 VND
Availability: InStock

Mã kho: PAM264

Mã nhà sản xuất: HSTT06-CC

Tên nhà sản xuất: Panduit

1.536.740₫ - 1.536.740₫

1.536.740₫

1.536.740₫ - 1.536.740₫

1.536.740₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Heat Shrink Tubing Accessories: Panduit HSTT06-CC

MÔ TẢ SẢN PHẨM

The HSTT06-CC Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Cro

_THÔNG SỐ KỸ THUẬT:

Product Type	Heat Shrink
Adhesive Lined	No
Color	Clear
Material	Cross-Linked Polyolefin
Maximum Operating Temperature (°C)	135
Maximum Operating Temperature (°F)	275
Minimum Operating Temperature (°C)	-55
Minimum Operating Temperature (°F)	-67
Nominal Diameter (In.)	0.063
Nominal Diameter (mm)	1.6
Nominal Recovered Wall Thickness (In.)	0.017
Nominal Recovered Wall Thickness (mm)	0.4
Sub Brand	Dry-Shrink™
Overall Length (In.)	1200
Overall Length (ft.)	100
Overall Length (m)	30.5
Overall Length (mm)	30500
Standards Met	Mil Spec: AMS-DTL-23053/5 Class 2
Shrink Ratio	2:1
Shrink Temperature (°C)	90
Shrink Temperature (°F)	194
Maximum Recovered Inside Diameter (In.)	0.031
Maximum Recovered Inside Diameter (mm)	0.8
Minimum Expanded Inside Diameter (In.)	0.063
Minimum Expanded Inside Diameter (mm)	1.6
Application	For Dry Locations; Insulating and protecting wires and cables

Panduit Thin-wall Heat Shrink Tubing shrinks around wires, connectors, joints and terminals when heated to protect against abrasion, fire and chemicals. Cross-link Polyolefin, 0.06”D x 100.00’L (1.6mm x 30.5m), Clear, 1pc. [HSTT06-CC]; PAM264
