Panduit Thin-wall Heat Shrink Tubing shrinks around wires, connectors, joints and terminals when heated to protect against abrasion, fire and chemicals. Cross-link Polyolefin, 1.00”D x 3.94’L (25.4mm x 1.2m), Black, 5pc. [HSTT100-48-5]; PAM292

Name: Panduit Thin-wall Heat Shrink Tubing shrinks around wires, connectors, joints and terminals when heated to protect against abrasion, fire and chemicals. Cross-link Polyolefin, 1.00”D x 3.94’L (25.4mm x 1.2m), Black, 5pc. [HSTT100-48-5]; PAM292
Brand: Panduit
SKU: PAM292
Price: 257640.0 VND
Availability: InStock

Mã kho: PAM292

Mã nhà sản xuất: HSTT100-48-5

Tên nhà sản xuất: Panduit

257.640₫ - 257.640₫

257.640₫

257.640₫ - 257.640₫

257.640₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Heat Shrink Tubing Accessories: Panduit HSTT100-48-5

MÔ TẢ SẢN PHẨM

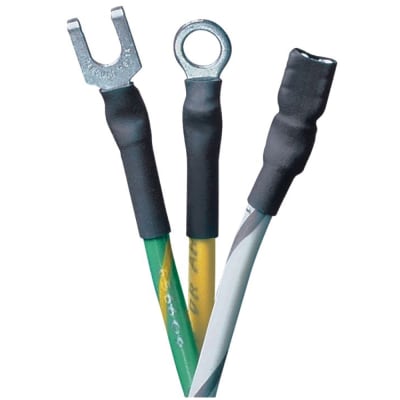

The HSTT100-48-5 Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C).

_THÔNG SỐ KỸ THUẬT:

Product Type	Heat Shrink
Adhesive Lined	No
Color	Black
Material	Cross-Linked Polyolefin
Maximum Operating Temperature (°C)	135
Maximum Operating Temperature (°F)	275
Minimum Operating Temperature (°C)	-55
Minimum Operating Temperature (°F)	-67
Nominal Diameter (In.)	1
Nominal Diameter (mm)	25.4
Nominal Recovered Wall Thickness (In.)	0.035
Nominal Recovered Wall Thickness (mm)	0.9
Sub Brand	Dry-Shrink™
Overall Length (In.)	48
Overall Length (ft.)	4
Overall Length (m)	1.2
Overall Length (mm)	1219.2
Resistance Properties	Flame Retardant
Standards Met	UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1
Shrink Ratio	2:1
Shrink Temperature (°C)	90
Shrink Temperature (°F)	194
Maximum Recovered Inside Diameter (In.)	0.5
Maximum Recovered Inside Diameter (mm)	12.7
Minimum Expanded Inside Diameter (In.)	1
Minimum Expanded Inside Diameter (mm)	25.4
Application	For Dry Locations; Insulating and protecting wires and cables
Part Features	2:1 shrink ratio for dry applications. Provides excellent abrasion protection and color coding. Flexible

Panduit Thin-wall Heat Shrink Tubing shrinks around wires, connectors, joints and terminals when heated to protect against abrasion, fire and chemicals. Cross-link Polyolefin, 1.00”D x 3.94’L (25.4mm x 1.2m), Black, 5pc. [HSTT100-48-5]; PAM292
