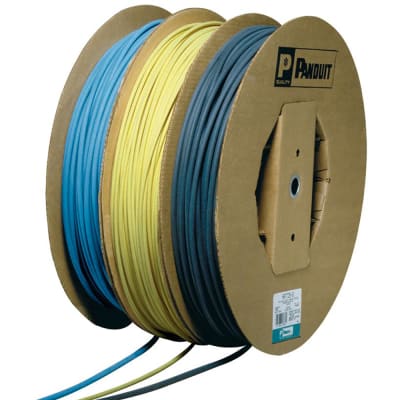

Panduit HSTT100-CC

Panduit Thin wall heat shrink, 1" (25.4mm) diameter, clear cross-linked polyolefin, 100 ft. (30.5m) per reel. [HSTT100-CC]; PAM306

Mã kho: PAM306
Mã nhà sản xuất: HSTT100-CC
Tên nhà sản xuất: Panduit
6.590.680₫ - 6.590.680₫
6.590.680₫
6.590.680₫ - 6.590.680₫
6.590.680₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Heat Shrink Tubing Accessories: Panduit HSTT100-CC

MÔ TẢ SẢN PHẨM

The HSTT100-CC Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Cr

_THÔNG SỐ KỸ THUẬT:

Product Type Heat Shrink
Adhesive Lined No
Color Clear
Material Cross-Linked Polyolefin
Maximum Operating Temperature (°C) 135
Maximum Operating Temperature (°F) 275
Minimum Operating Temperature (°C) -55
Minimum Operating Temperature (°F) -67
Nominal Diameter (In.) 1
Nominal Diameter (mm) 25.4
Nominal Recovered Wall Thickness (In.) 0.035
Nominal Recovered Wall Thickness (mm) 0.9
Sub Brand Dry-Shrink™
Overall Length (In.) 1200
Overall Length (ft.) 100
Overall Length (m) 30.5
Overall Length (mm) 30500
Standards Met Mil Spec: AMS-DTL-23053/5 Class 2
Shrink Ratio 2:1
Shrink Temperature (°C) 90
Shrink Temperature (°F) 194
Maximum Recovered Inside Diameter (In.) 0.5
Maximum Recovered Inside Diameter (mm) 12.7
Minimum Expanded Inside Diameter (In.) 1
Minimum Expanded Inside Diameter (mm) 25.4
Application For Dry Locations; Insulating and protecting wires and cables
Part Features 2:1 shrink ratio for dry applications. Provides excellent abrasion protection and color coding. Flexible
