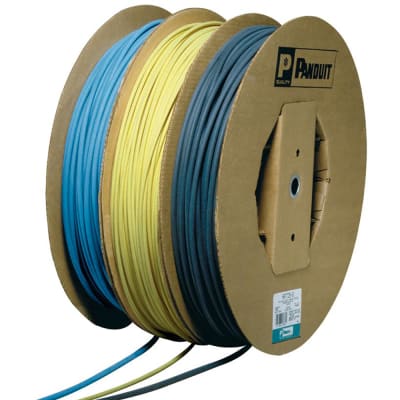

Panduit Thin wall heat shrink, 2" (50.8mm) diameter, black cross-linked polyolefin, 50 ft. (15.2m) per reel. [HSTT200-L]; PAM374

Name: Panduit Thin wall heat shrink, 2" (50.8mm) diameter, black cross-linked polyolefin, 50 ft. (15.2m) per reel. [HSTT200-L]; PAM374
Brand: Panduit
SKU: PAM374
Price: 8827130.0 VND
Availability: InStock

Mã kho: PAM374

Mã nhà sản xuất: HSTT200-L

Tên nhà sản xuất: Panduit

8.827.130₫ - 8.827.130₫

8.827.130₫

8.827.130₫ - 8.827.130₫

8.827.130₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Heat Shrink Tubing Accessories: Panduit HSTT200-L

MÔ TẢ SẢN PHẨM

The HSTT200-L Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Fla

_THÔNG SỐ KỸ THUẬT:

Product Type	Heat Shrink
Adhesive Lined	No
Color	Black
Material	Cross-Linked Polyolefin
Maximum Operating Temperature (°C)	135
Maximum Operating Temperature (°F)	275
Minimum Operating Temperature (°C)	-55
Minimum Operating Temperature (°F)	-67
Nominal Diameter (In.)	2
Nominal Diameter (mm)	50.8
Nominal Recovered Wall Thickness (In.)	0.045
Nominal Recovered Wall Thickness (mm)	1.1
Sub Brand	Dry-Shrink™
Overall Length (In.)	600
Overall Length (ft.)	50
Overall Length (m)	15.2
Overall Length (mm)	15200
Resistance Properties	Flame Retardant
Standards Met	UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1
Shrink Ratio	2:1
Shrink Temperature (°C)	90
Shrink Temperature (°F)	194
Maximum Recovered Inside Diameter (In.)	1
Maximum Recovered Inside Diameter (mm)	25.4
Minimum Expanded Inside Diameter (In.)	2
Minimum Expanded Inside Diameter (mm)	50.8
Application	For Dry Locations; Insulating and protecting wires and cables
Part Features	2:1 shrink ratio for dry applications. Provides excellent abrasion protection and color coding. Flexible
