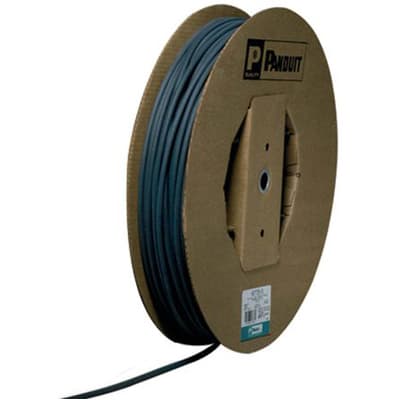

Panduit HSTT75-C

Panduit Thin wall heat shrink, .75" (19.0mm) diameter, black cross-linked polyolefin, 100 ft. (30.5m) per reel. [HSTT75-C]; PAM487

Mã kho: PAM487
Mã nhà sản xuất: HSTT75-C
Tên nhà sản xuất: Panduit
4.452.650₫ - 4.452.650₫
4.452.650₫
4.452.650₫ - 4.452.650₫
4.452.650₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Heat Shrink Tubing Accessories: Panduit HSTT75-C

MÔ TẢ SẢN PHẨM

The HSTT75-C Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Flam

_THÔNG SỐ KỸ THUẬT:

Product Type Heat Shrink
Adhesive Lined No
Color Black
Material Cross-Linked Polyolefin
Maximum Operating Temperature (°C) 135
Maximum Operating Temperature (°F) 275
Minimum Operating Temperature (°C) -55
Minimum Operating Temperature (°F) -67
Nominal Diameter (In.) 0.75
Nominal Diameter (mm) 19.1
Nominal Recovered Wall Thickness (In.) 0.03
Nominal Recovered Wall Thickness (mm) 0.8
Sub Brand Dry-Shrink™
Overall Length (In.) 1200
Overall Length (ft.) 100
Overall Length (m) 30.5
Overall Length (mm) 30500
Resistance Properties Flame Retardant
Standards Met UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1
Shrink Ratio 2:1
Shrink Temperature (°C) 90
Shrink Temperature (°F) 194
Maximum Recovered Inside Diameter (In.) 0.375
Maximum Recovered Inside Diameter (mm) 9.5
Minimum Expanded Inside Diameter (In.) 0.75
Minimum Expanded Inside Diameter (mm) 19.1
Application For Dry Locations; Insulating and protecting wires and cables
Part Features 2:1 shrink ratio for dry applications. Provides excellent abrasion protection and color coding. Flexible
