Panduit HSTTRA50-48-5

Panduit Semi-Rigid adhesive lined heat shrink, .50" (12.7mm) diameter, adhesive lined black cross-linked polyolefin, 5 pc. package quantity. [HSTTRA50-48-5]; PAM573

Mã kho: PAM573
Mã nhà sản xuất: HSTTRA50-48-5
Tên nhà sản xuất: Panduit
401.140₫ - 401.140₫
401.140₫
401.140₫ - 401.140₫
401.140₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Heat Shrink Tubing Accessories: Panduit HSTTRA50-48-5

MÔ TẢ SẢN PHẨM

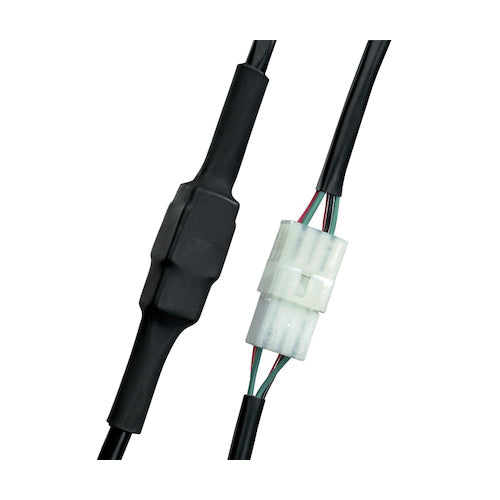

The HSTTRA50-48-5 Semi-Rigid Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 42.5:1. Temperature range: -67°F to 230°F

_THÔNG SỐ KỸ THUẬT:

Product Type Heat Shrink
Adhesive Lined Yes
Color Black
Material Adhesive Lined Cross-Linked Polyolefin
Maximum Operating Temperature (°C) 110
Maximum Operating Temperature (°F) 230
Minimum Operating Temperature (°C) -55
Minimum Operating Temperature (°F) -67
Nominal Diameter (In.) 0.5
Nominal Diameter (mm) 12.7
Nominal Recovered Wall Thickness (In.) 0.055
Nominal Recovered Wall Thickness (mm) 1.4
Sub Brand Damp-Shrink™
Overall Length (In.) 48
Overall Length (ft.) 4
Overall Length (m) 1.2
Overall Length (mm) 1219.2
Resistance Properties Outer wall is flame retardant; Suitable for damp locations
Standards Met UL: E342365; Mil Spec: AMS-DTL-23053/4 Class 1
Shrink Ratio Other
Shrink Temperature (°C) 125
Shrink Temperature (°F) 257
Maximum Recovered Inside Diameter (In.) 0.195
Maximum Recovered Inside Diameter (mm) 5
Minimum Expanded Inside Diameter (In.) 0.5
Minimum Expanded Inside Diameter (mm) 12.7
Application For Damp Locations; Insulating and protecting wires and cables
