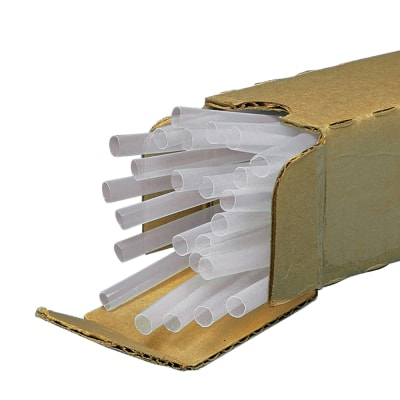

Panduit HSTTT30-48-Q

Panduit Thin wall TFE heat shrink, 6 AWG (7.7mm) diameter, polytetrafluoroethylene (TFE), clear, 25 pc. package quantity. [HSTTT30-48-Q]; PAM589

Mã kho: PAM589
Mã nhà sản xuất: HSTTT30-48-Q
Tên nhà sản xuất: Panduit
601.710₫ - 601.710₫
601.710₫
601.710₫ - 601.710₫
601.710₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Heat Shrink Tubing Accessories: Panduit HSTTT30-48-Q

MÔ TẢ SẢN PHẨM

The HSTTT30-48-Q Thin Wall Heat Shrink is designed to insulate and protect wires and cables in high temperature, dry locations - resists corrosive atmosphere. Voltage rating: 600 V. Shrink ratio: 2:1. Temperature range: -88°F to 482°F (-67°C to 250°C). Polytetrafluroethylene (PTFE). 6 AWG (7.7 mm) d

_THÔNG SỐ KỸ THUẬT:

Note Use a controlled temperature oven as a best practice for shrinking TFE Heat Shrink to achieve the most reliable results
Product Type Heat Shrink
Adhesive Lined No
Color Milky Clear
Material Polytetrafluoroethylene (TFE)
Maximum Operating Temperature (°C) 250
Maximum Operating Temperature (°F) 482
Minimum Operating Temperature (°C) -67
Minimum Operating Temperature (°F) -88
Nominal Diameter (AWG) 6
Nominal Diameter (In.) 0.302
Nominal Diameter (mm) 7.7
Nominal Recovered Wall Thickness (In.) 0.015
Nominal Recovered Wall Thickness (mm) 0.4
Sub Brand Dry-Shrink™
Overall Length (In.) 48
Overall Length (ft.) 4
Overall Length (m) 1.2
Overall Length (mm) 1219.2
Resistance Properties Chemical Resistant; Non-Flammable; UV Resistant;
Standards Met Mil Spec: AMS-DTL-23053/12 Class 2 and 3
Shrink Ratio 2:1
Shrink Temperature (°C) 340
Shrink Temperature (°F) 644
Maximum Recovered Inside Diameter (In.) 0.178
Maximum Recovered Inside Diameter (mm) 4.5
Minimum Expanded Inside Diameter (In.) 0.302
Minimum Expanded Inside Diameter (mm) 7.7
Application For Dry Locations; Insulating and protecting wires and cables
