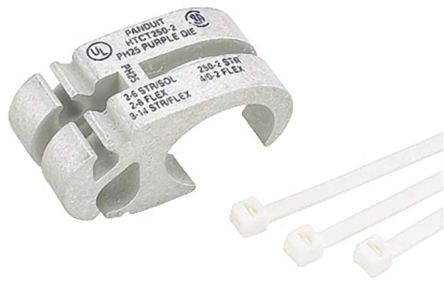

Panduit HTCT Wire Splice Connector, Silver, Tin Plated 2 AWG [HTCT250-250-1]; 847-8701

Name: Panduit HTCT Wire Splice Connector, Silver, Tin Plated 2 AWG [HTCT250-250-1]; 847-8701
Brand: Panduit
SKU: 8478701
Price: 1008640.0 VND
Availability: InStock

Mã kho: 8478701

Mã nhà sản xuất: HTCT250-250-1

Tên nhà sản xuất: Panduit

1.008.640₫ - 1.008.640₫

1.008.640₫

1.008.640₫ - 1.008.640₫

1.008.640₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Compression Connectors Covers / Htap Connectors: Panduit HTCT250-250-1

MÔ TẢ SẢN PHẨM

Copper Compression HTAP with code 250 kcmil - #2 AWG Run and Tap 1 or flex 4/0 - #2 AWG Run and Tap 1.

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StructuredGround
Surface Treatment	Tinned
Overall Length (In.)	0.9
Overall Length (mm)	22.9
Overall Width (In.)	0.89
Overall Width (mm)	22.6
Overall Height (In.)	1.92
Overall Height (mm)	48.8
Wire Strip Length (In.)	1
Wire Strip Length (mm)	25
Panduit Die Index Number	PH25
Color Code	Purple
Application	Used to tap into continuous conductors as a splice or pigtailing
Product Type	Compression Connectors - Taps
Part Features	Slotted design allows quick and easy assembly of conductor to HTAP using three Panduit 94V-0 cable ties included
