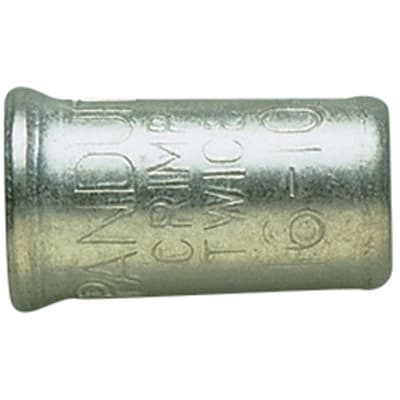

Panduit Wire Joint, non-insulated, 2 #14 - 3 #12 AWG, standard package. [J214-312-T]; PAM698

Mã kho: PAM698
Mã nhà sản xuất: J214-312-T
Tên nhà sản xuất: Panduit
Original price 0₫ - Original price 0₫
Original price
0₫
0₫ - 0₫
Current price 0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Terminals Terminal Kits / Wire Joints: Panduit J214-312-T

MÔ TẢ SẢN PHẨM

Wire Joint, non-insulated, 2 #14 - 3 #12 AWG, standard package.

_THÔNG SỐ KỸ THUẬT:

Product Type Wire Joint
Base Material Brass
Wire Strip Length (In.) 0.5
Color Code Metallic
Finish/Coating Tin-Plated
Insulation Material Non-Insulated
Maximum Operating Temperature (°C) 150
Maximum Operating Temperature (°F) 302
Maximum Voltage (V) 2000
Maximum Voltage (kV) 2
Overall Length (In.) 0.37
Overall Length (mm) 9.4
Inside Diameter (In.) 0.01
Inside Diameter (mm) 0.2
Standards Met CSA Certified: C22.2 No 65; UL Listed: UL486C
Wire Strip Length (mm) 12.7
Packaging Type Bottle
For Use With CT-100A, CT-200
Sub Brand Pan-Term
