Panduit lugs [LAM2A1000-58-6Y], PAC066

Name: Panduit lugs [LAM2A1000-58-6Y], PAC066
Brand: Panduit
SKU: PAC066
Availability: InStock

Mã kho: PAC066

Mã nhà sản xuất: LAM2A1000-58-6Y

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

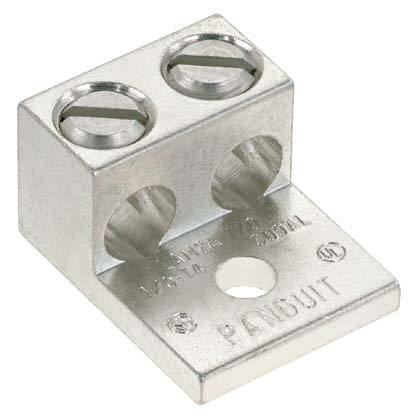

One-hole, aluminum, two barrel lug, dual barrel, type LAM2A, NEMA hole sizes and spacing, 500 - 1000 kcmil, 5/8 (15.9mm) stud hole.

Application	Stranded Aluminum or Copper Code Conductor
Note	LAM2A1000-58-6Y replaces LAM2A1000-58-6
Product Type	Mechanical Connectors - Lugs
Stud Hole Size (In.)	5/8
Number of Holes	1
Tongue Type	Straight
Tongue Length (In.)	1.88
Tongue Length (mm)	50.8
Tongue Thickness (In.)	0.5
Tongue Thickness (mm)	12.7
Tongue Width (In.)	3.5
Tongue Width (mm)	72.9
Overall Height (In.)	1.9
Overall Height (mm)	42.9
Overall Length (In.)	3.5
Overall Length (mm)	88.9
Standards Met	UL Listed and CSA Certified for use up to 600 V and UL
Hex Size (mm)	9.5
Sub Brand	Pan-Lug
Part Features	Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
