Panduit lugs [LAM2SA300-56-3], PAC073
Panduit lugs [LAM2SA300-56-3], PAC073

Panduit lugs [LAM2SA300-56-3], PAC073

Mã kho: PAC073
Mã nhà sản xuất: LAM2SA300-56-3
Tên nhà sản xuất: Panduit
742.810₫ - 742.810₫
742.810₫
742.810₫ - 742.810₫
742.810₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAM2SA300-56-3

MÔ TẢ SẢN PHẨM

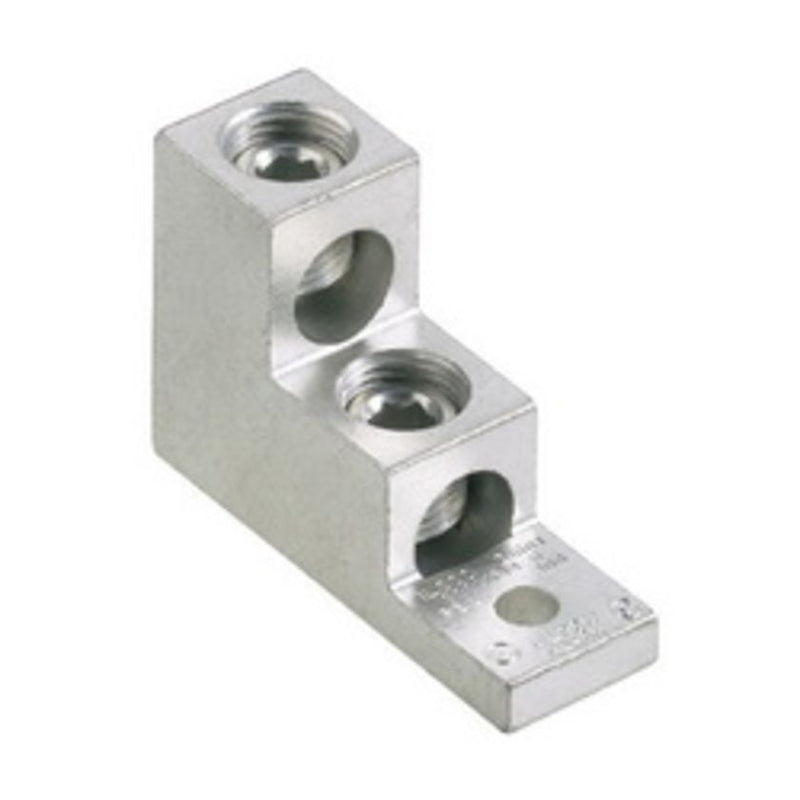

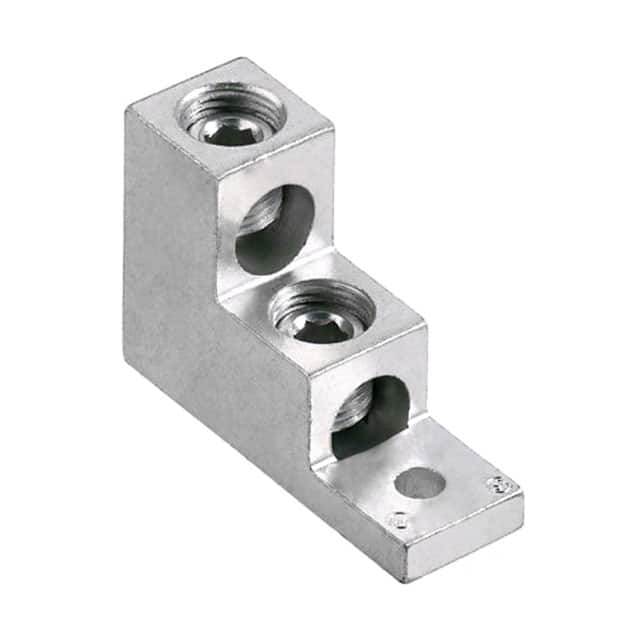

One-hole, aluminum, vertical two barrel lug, dual barrel, type LAM2SA, #6 AWG - 300 kcmil, 5/16 (7.9mm) stud hole.

_THÔNG SỐ KỸ THUẬT:

Application Stranded Aluminum or Copper Code Conductor
Product Type Mechanical Connectors - Lugs
Stud Hole Size (In.) 5/16
Number of Holes 1
Tongue Type Straight
Tongue Length (In.) 1
Tongue Thickness (In.) 0.5
Tongue Width (In.) 1
Tongue Width (mm) 25.4
Overall Height (In.) 2
Overall Height (mm) 50.8
Overall Length (In.) 3
Overall Length (mm) 76.2
Standards Met UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C
Sub Brand Pan-Lug
Part Features Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
