Panduit lugs [LAM4SB750-38-1Y], PAD017

Name: Panduit lugs [LAM4SB750-38-1Y], PAD017
Brand: Panduit
SKU: PAD017
Price: 4467210.0 VND
Availability: InStock

Mã kho: PAD017

Mã nhà sản xuất: LAM4SB750-38-1Y

Tên nhà sản xuất: Panduit

4.467.210₫ - 4.467.210₫

4.467.210₫

4.467.210₫ - 4.467.210₫

4.467.210₫

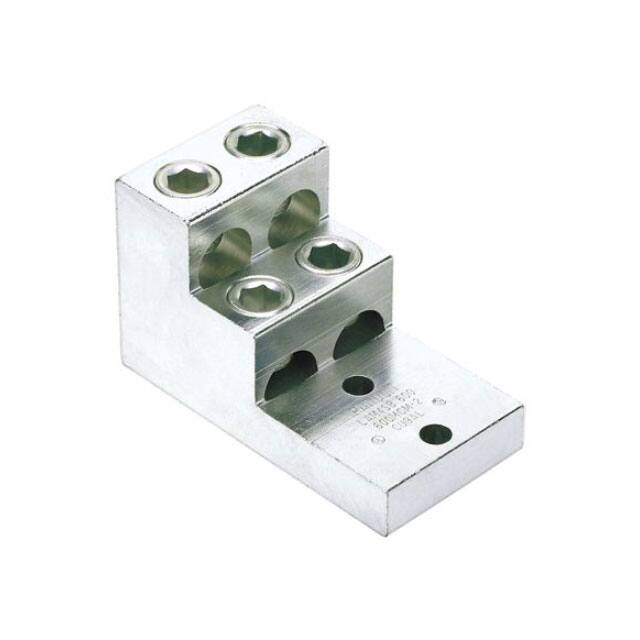

Two-hole, aluminum, vertical four barrel lug, type LAM4SB, 1/0 AWG - 750 kcmil, 3/8 (9.5mm) stud hole.

Note	LAM4SB750-38-1Y replaces LAM4SB750-38-1
Product Type	Mechanical Connectors - Lugs
Stud Hole Size (In.)	3/8
Stud Hole Spacing (In.)	1.38
Stud Hole Spacing (mm)	35.1
Number of Holes	2
Tongue Type	Straight
Tongue Length (In.)	2.34
Tongue Length (mm)	59.4
Tongue Thickness (In.)	0.75
Tongue Thickness (mm)	19.1
Tongue Width (In.)	2.84
Tongue Width (mm)	66.8
Overall Height (In.)	3
Overall Height (mm)	76.2
Overall Length (In.)	4.91
Overall Length (mm)	124.7
Standards Met	UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C
Hex Size (mm)	9.5
Sub Brand	Pan-Lug
Part Features	Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
