Panduit LAMA Series Uninsulated Crimp Terminal, 5/16in Stud Size, Silver [LAMA300-56-QY]; 847-8754

Name: Panduit LAMA Series Uninsulated Crimp Terminal, 5/16in Stud Size, Silver [LAMA300-56-QY]; 847-8754
Brand: Panduit
SKU: 8478754
Price: 294830.0 VND
Availability: InStock

Mã kho: 8478754

Mã nhà sản xuất: LAMA300-56-QY

Tên nhà sản xuất: Panduit

294.830₫ - 294.830₫

294.830₫

294.830₫ - 294.830₫

294.830₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LAMA300-56-QY

MÔ TẢ SẢN PHẨM

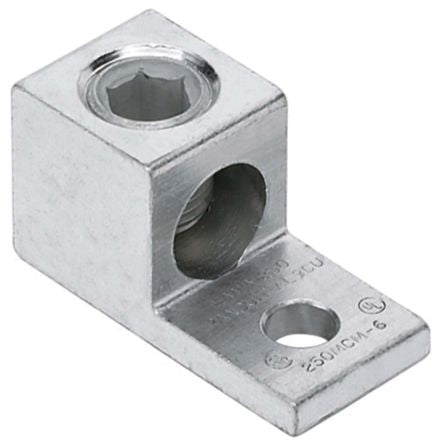

One-hole, aluminum, single barrel lug, type LAMA, #6 AWG - 300 kcmil, 5/16 (7.9mm) stud hole.

_THÔNG SỐ KỸ THUẬT:

Note	LAMA300-56-QY replaces LAMA300-56-Q
Product Type	Aluminum Mechanical Connectors, One Hole, Single Barrel - Lugs
Stud Hole Size (In.)	5/16
Number of Holes	1
Tongue Type	Straight
Tongue Length (In.)	1
Tongue Length (mm)	25.4
Tongue Thickness (In.)	0.25
Tongue Thickness (mm)	5.6
Tongue Width (In.)	1
Tongue Width (mm)	22.9
Overall Height (In.)	1.1
Overall Height (mm)	26.9
Overall Length (In.)	2
Overall Length (mm)	50.8
Hex Size (mm)	9.5
Sub Brand	Pan-Lug
Part Features	Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance.
