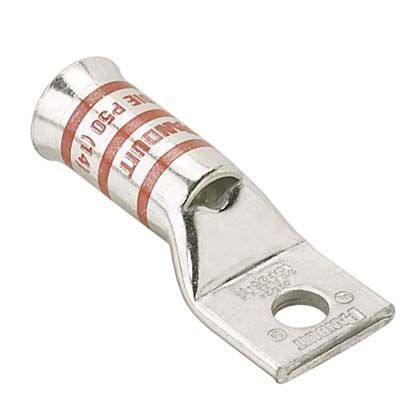

Panduit lugs [LCAF350-1-6], PAD174

Name: Panduit lugs [LCAF350-1-6], PAD174
Brand: Panduit
SKU: PAD174
Availability: InStock

Mã kho: PAD174

Mã nhà sản xuất: LCAF350-1-6

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

One-hole, flared barrel, 350 kcmil cable, 1 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	1
Stud Hole Size (mm)	25.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.85
Barrel Length (mm)	47
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.54
Tongue Width (mm)	39.1
Tongue Angle	Straight
Tongue Thickness (In.)	0.22
Tongue Thickness (mm)	5.6
Overall Length (In.)	4.37
Overall Length (mm)	111
Color Code	Blue
Panduit Die Index Number	P76
Wire Strip Length (In.)	19,375
Wire Strip Length (mm)	49.2
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
