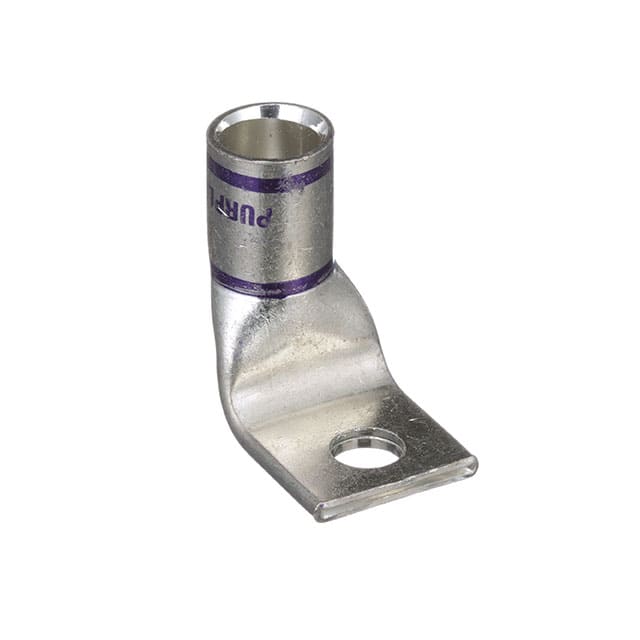

Panduit lugs [LCAS4/0-38F-X], PAE996

Name: Panduit lugs [LCAS4/0-38F-X], PAE996
Brand: Panduit
SKU: PAE996
Availability: InStock

Mã kho: PAE996

Mã nhà sản xuất: LCAS4/0-38F-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

One-hole, short barrel with window lug, 4/0 AWG wire, 3/8 stud hole, 90 ° angle tongue.

Copper Conductor Size (AWG)	4/0
Copper Conductor Size (kcmil)	212
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Short Barrel Length with Inspection Window
Barrel Length (In.)	0.91
Barrel Length (mm)	23.1
Tongue Type	Standard
Tongue Width (In.)	1.06
Tongue Width (mm)	26.9
Tongue Angle	90°
Tongue Thickness (In.)	0.14
Tongue Thickness (mm)	3.6
Overall Length (In.)	1.84
Overall Length (mm)	46.7
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
Color Code	Purple
Panduit Die Index Number	P54
Burndy Die Index Number	15
Wire Strip Length (In.)	1
Wire Strip Length (mm)	25.4
Part Features	Tin plated,color coded barrel,inspection window,short barrel for limited space apps,NEBS level 3.
