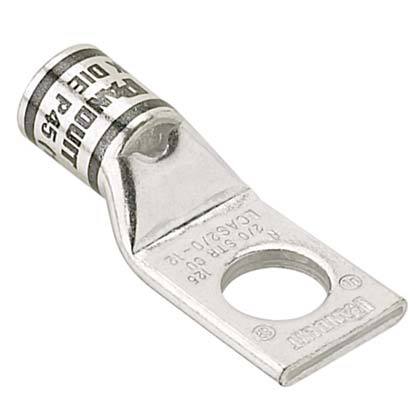

Panduit lugs [LCAS4/0-58-X], PAF051
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| _THÔNG SỐ KỸ THUẬT: | |
|---|---|
| Copper Conductor Size (kcmil) | 212 |
| Copper Conductor Size (AWG) | 4/0 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Stud Hole Size (In.) | 42.952 |
| Stud Hole Size (mm) | 15.9 |
| Barrel Type | Short Barrel Length with Inspection Window |
| Barrel Length (mm) | 23.1 |
| Barrel Length (In.) | 0.91 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.19 |
| Tongue Width (mm) | 30.2 |
| Tongue Angle | Straight |
| Tongue Thickness (mm) | 4.1 |
| Tongue Thickness (In.) | 0.16 |
| Overall Length (mm) | 67.1 |
| Overall Length (In.) | 2.64 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Purple |
| Panduit Die Index Number | P54 |
| Burndy Die Index Number | 15 |
| Wire Strip Length (mm) | 25.4 |
| Wire Strip Length (In.) | 1 |
| Sub Brand | Pan-Lug |
| Part Features | Tin plated,color coded barrel,inspection window,short barrel for limited space apps,NEBS level 3. |
