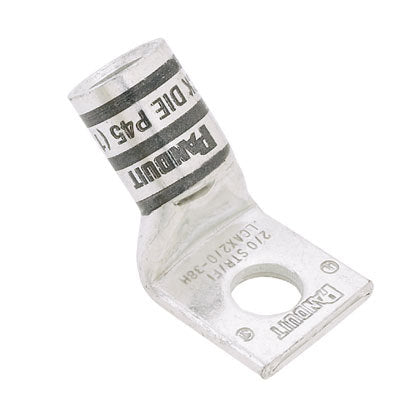

Panduit lugs [LCAX300-38H-6], PAD326

Name: Panduit lugs [LCAX300-38H-6], PAD326
Brand: Panduit
SKU: PAD326
Price: 1122620.0 VND
Availability: InStock

Mã kho: PAD326

Mã nhà sản xuất: LCAX300-38H-6

Tên nhà sản xuất: Panduit

1.122.620₫ - 1.122.620₫

1.122.620₫

1.122.620₫ - 1.122.620₫

1.122.620₫

One-hole, flex lug, 300 kcmil cable, 3/8 stud hole, 45° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.19
Barrel Length (mm)	30.2
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.39
Tongue Width (mm)	35.3
Tongue Angle	45°
Tongue Thickness (In.)	0.18
Tongue Thickness (mm)	4.6
Overall Length (In.)	2.64
Overall Length (mm)	67.1
Color Code	Red
Panduit Die Index Number	P71
Burndy Die Index Number	18
Wire Strip Length (In.)	1.25
Wire Strip Length (mm)	31.8
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
