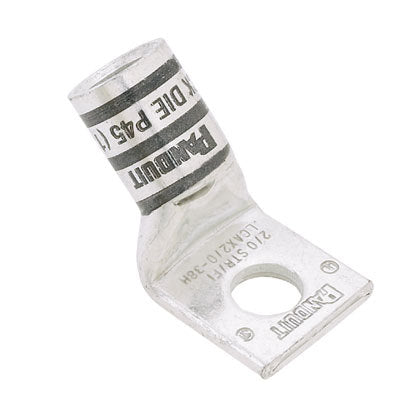

Panduit lugs [LCAX350-58H-6], PAD338

Name: Panduit lugs [LCAX350-58H-6], PAD338
Brand: Panduit
SKU: PAD338
Availability: InStock

Mã kho: PAD338

Mã nhà sản xuất: LCAX350-58H-6

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

One-hole, flex lug, 350 kcmil cable, 5/8 stud hole, 45° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.952
Stud Hole Size (mm)	15.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.29
Barrel Length (mm)	32.8
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.54
Tongue Width (mm)	39.1
Tongue Angle	45°
Tongue Thickness (In.)	0.22
Tongue Thickness (mm)	5.6
Overall Length (In.)	2.99
Overall Length (mm)	76
Color Code	Blue
Panduit Die Index Number	P76
Burndy Die Index Number	19
Wire Strip Length (In.)	1,375
Wire Strip Length (mm)	34.9
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
