Panduit lugs [LCAX4/0-14H-X], PAD352

Name: Panduit lugs [LCAX4/0-14H-X], PAD352
Brand: Panduit
SKU: PAD352
Price: 685970.0 VND
Availability: InStock

Mã kho: PAD352

Mã nhà sản xuất: LCAX4/0-14H-X

Tên nhà sản xuất: Panduit

685.970₫ - 685.970₫

685.970₫

685.970₫ - 685.970₫

685.970₫

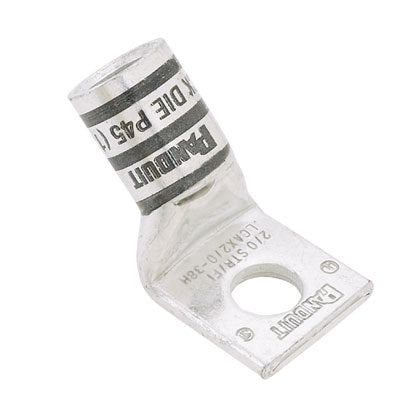

One-hole, flex lug, 4/0 AWG wire, 1/4 stud hole, 45° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.03
Barrel Length (mm)	26.2
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.19
Tongue Width (mm)	30.2
Tongue Angle	45°
Tongue Thickness (In.)	0.16
Tongue Thickness (mm)	4.1
Overall Length (In.)	2.03
Overall Length (mm)	51.6
Color Code	Purple
Panduit Die Index Number	P54
Burndy Die Index Number	15
Wire Strip Length (In.)	10,625
Wire Strip Length (mm)	27
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
