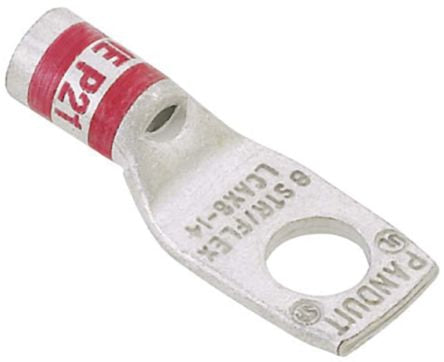

Panduit LCAX Series Uninsulated Tubular Ring Terminal, 5/8in Stud Size, Silver [LCAX4/0-58-X]; 847-8748

Name: Panduit LCAX Series Uninsulated Tubular Ring Terminal, 5/8in Stud Size, Silver [LCAX4/0-58-X]; 847-8748
Brand: Panduit
SKU: 8478748
Price: 313740.0 VND
Availability: InStock

Mã kho: 8478748

Mã nhà sản xuất: LCAX4/0-58-X

Tên nhà sản xuất: Panduit

313.740₫ - 313.740₫

313.740₫

313.740₫ - 313.740₫

313.740₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAX4/0-58-X

MÔ TẢ SẢN PHẨM

One-hole, flex lug, 4/0 AWG wire, 5/8 stud hole.

_THÔNG SỐ KỸ THUẬT:

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.952
Stud Hole Size (mm)	15.9
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.03
Barrel Length (mm)	26.2
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.19
Tongue Width (mm)	30.2
Tongue Angle	Straight
Tongue Thickness (In.)	0.16
Tongue Thickness (mm)	4.1
Overall Length (In.)	2.85
Overall Length (mm)	72.4
Color Code	Purple
Panduit Die Index Number	P54
Burndy Die Index Number	15
Wire Strip Length (In.)	10,625
Wire Strip Length (mm)	27
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
