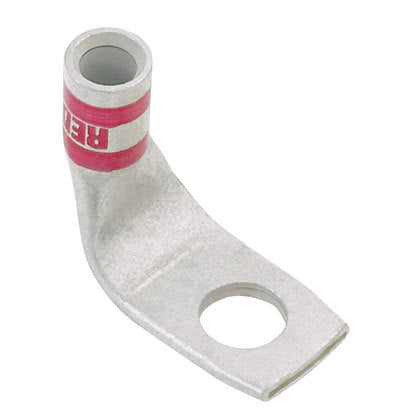

Panduit Wire Termination, [LCAX750-12F-3]; PAI960

Mã kho: PAI960
Mã nhà sản xuất: LCAX750-12F-3
Tên nhà sản xuất: Panduit
Original price 0₫ - Original price 0₫
Original price
0₫
0₫ - 0₫
Current price 0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCAX750-12F-3

MÔ TẢ SẢN PHẨM

One-hole, flex lug, 750 kcmil cable, 1/2 stud hole., 90° angle tongue.

_THÔNG SỐ KỸ THUẬT:

Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.767
Stud Hole Size (mm) 12.7
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 1.66
Barrel Length (mm) 42.2
Tongue Type Standard Tongue Width
Tongue Width (In.) 2.17
Tongue Width (mm) 55.1
Tongue Angle 90°
Tongue Thickness (In.) 0.32
Tongue Thickness (mm) 8.1
Overall Length (In.) 2.86
Overall Length (mm) 72.6
Color Code Yellow
Panduit Die Index Number P115
Burndy Die Index Number L115
Wire Strip Length (In.) 1.75
Wire Strip Length (mm) 44.5
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
