Panduit lugs [LCAXN450-12-6], PAE744

Name: Panduit lugs [LCAXN450-12-6], PAE744
Brand: Panduit
SKU: PAE744
Availability: InStock

Mã kho: PAE744

Mã nhà sản xuất: LCAXN450-12-6

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

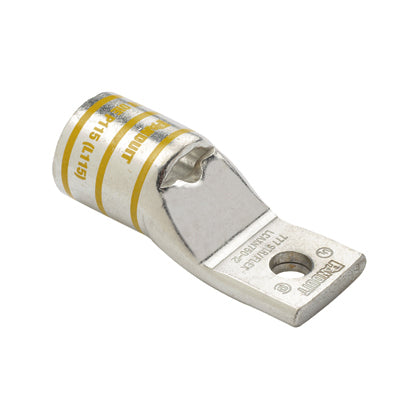

Copper Compression Lug, 1 Hole, Flex, 450 kcmil, Narrow Tongue, 1/2" (12.7mm) Stud

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Stud Hole Size (In.)	1/2
Stud Hole Size (mm)	12.7
Tongue Type	Narrow Tongue Width
Tongue Angle	Straight
Tongue Thickness (In.)	0.33
Tongue Thickness (mm)	8.3
Tongue Width (In.)	1.19
Tongue Width (mm)	30.2
Overall Length (In.)	4.22
Overall Length (mm)	107
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.75
Barrel Length (mm)	44.4
Wire Strip Length (In.)	1.81
Wire Strip Length (mm)	46
