Panduit Wire Termination, [LCC2/0-14AF-X]; PAI965

Name: Panduit Wire Termination, [LCC2/0-14AF-X]; PAI965
Brand: Panduit
SKU: PAI965
Availability: InStock

Mã kho: PAI965

Mã nhà sản xuất: LCC2/0-14AF-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

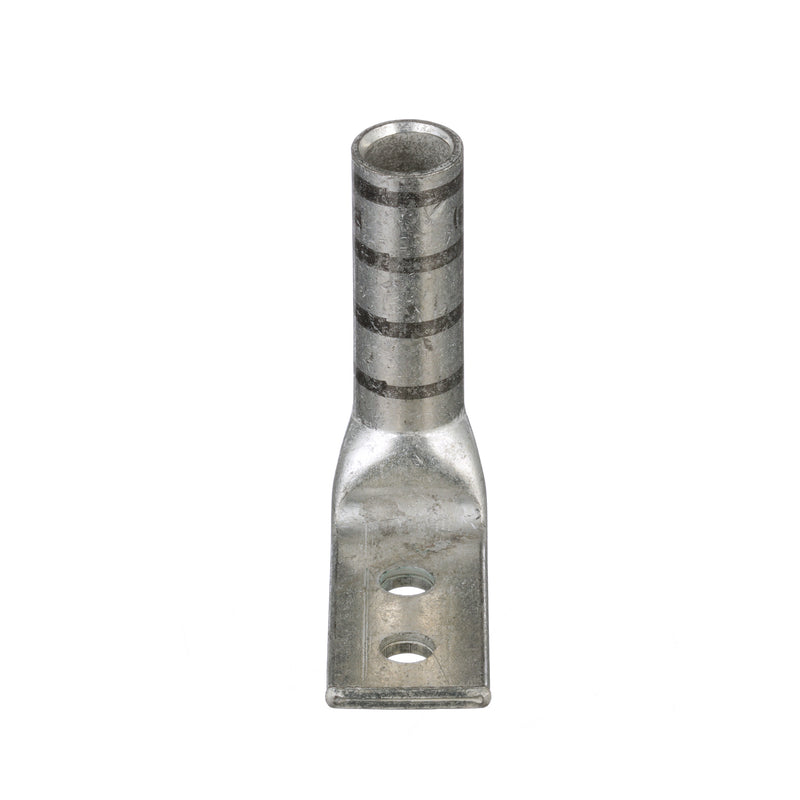

Two-hole, long barrel lug, 2/0 AWG wire, 1/4 stud hole, 5/8 hole spacing, 90° angle tongue.

Copper Conductor Size (AWG)	2/0
Copper Conductor Size (kcmil)	133.1
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	0.63
Stud Hole Spacing (mm)	16
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	1.5
Barrel Length (mm)	38.1
Tongue Type	Standard
Tongue Width (In.)	0.85
Tongue Width (mm)	21.6
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	2.22
Overall Length (mm)	56.4
Color Code	Black
Panduit Die Index Number	45
Burndy Die Index Number	13
Wire Strip Length (In.)	1.56
Wire Strip Length (mm)	39.7
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
