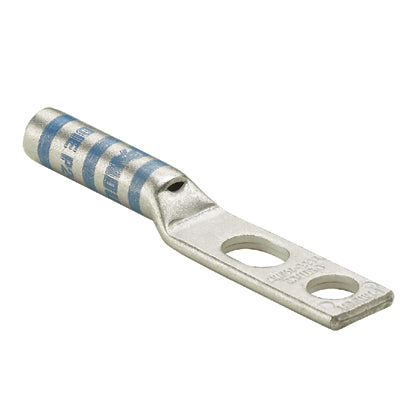

Panduit LCC4-14ADW-L

Panduit lugs [LCC4-14ADW-L], PAD661

Mã kho: PAD661
Mã nhà sản xuất: LCC4-14ADW-L
Tên nhà sản xuất: Panduit
345.700₫ - 345.700₫
345.700₫
345.700₫ - 345.700₫
345.700₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCC4-14ADW-L

MÔ TẢ SẢN PHẨM

Two-hole, long barrel lug with window, #4 — #3 AWG STR, #2 AWG SOL wire, 1/4 stud hole (one slotted), .63-1 hole spacing.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG) #4
Copper Conductor Size (kcmil) 42
Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.826
Stud Hole Size (mm) 6.4
Stud Hole Spacing (In.) 1
Stud Hole Spacing (mm) 25.4
Barrel Type Long Barrel Length with Inspection Window
Barrel Length (In.) 1.05
Barrel Length (mm) 26.7
Tongue Type Standard
Tongue Width (In.) 0.55
Tongue Width (mm) 14
Tongue Thickness (In.) 0.09
Tongue Thickness (mm) 2.3
Overall Length (In.) 2.87
Overall Length (mm) 72.9
Color Code Gray
Panduit Die Index Number P29
Burndy Die Index Number 8
Wire Strip Length (In.) 1.13
Wire Strip Length (mm) 28.6
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
