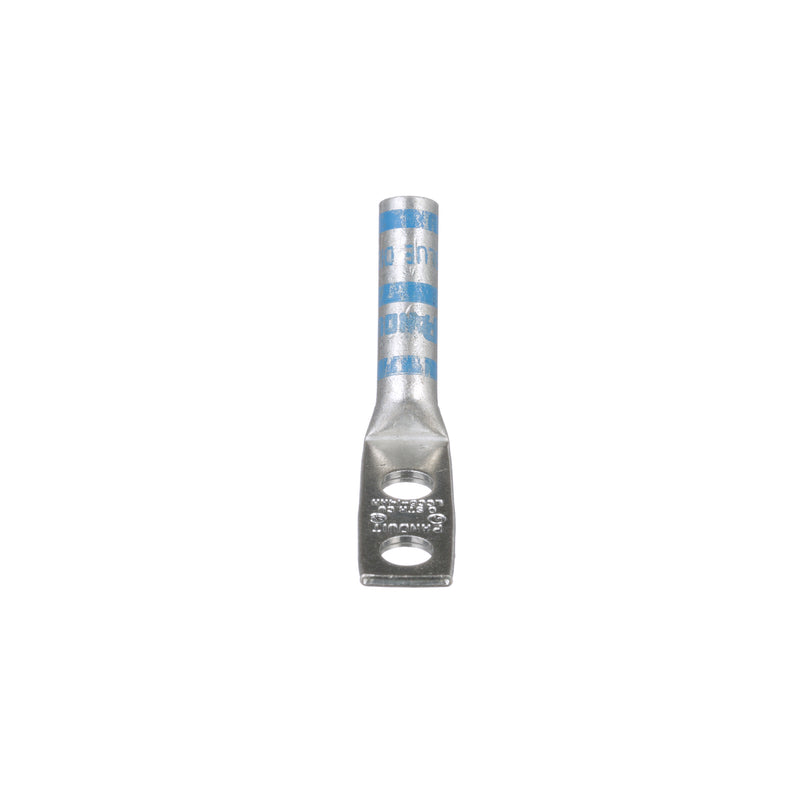

Panduit LCC6-14AH-L

Panduit Wire Termination, [LCC6-14AH-L]; PAI970

Mã kho: PAI970
Mã nhà sản xuất: LCC6-14AH-L
Tên nhà sản xuất: Panduit
466.390₫ - 466.390₫
466.390₫
466.390₫ - 466.390₫
466.390₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCC6-14AH-L

MÔ TẢ SẢN PHẨM

Two-hole, long barrel lug, #6 AWG wire, 1/4 stud hole, 5/8 hole spacing, 45° angle tongue.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG) #6
Copper Conductor Size (kcmil) 26.24
Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.826
Stud Hole Size (mm) 6.4
Stud Hole Spacing (In.) 0.63
Stud Hole Spacing (mm) 16
Barrel Type Long Barrel Length without Inspection Window
Barrel Length (In.) 1.07
Barrel Length (mm) 27.2
Tongue Type Standard
Tongue Width (In.) 0.48
Tongue Width (mm) 12.2
Tongue Thickness (In.) 0.08
Tongue Thickness (mm) 2
Overall Length (In.) 2.23
Overall Length (mm) 56.6
Color Code Blue
Panduit Die Index Number 24
Burndy Die Index Number 7
Wire Strip Length (In.) 1.13
Wire Strip Length (mm) 28.6
Part Features Tin plated to inhibit corrosion,color coded barrel,NEBS level 3.
