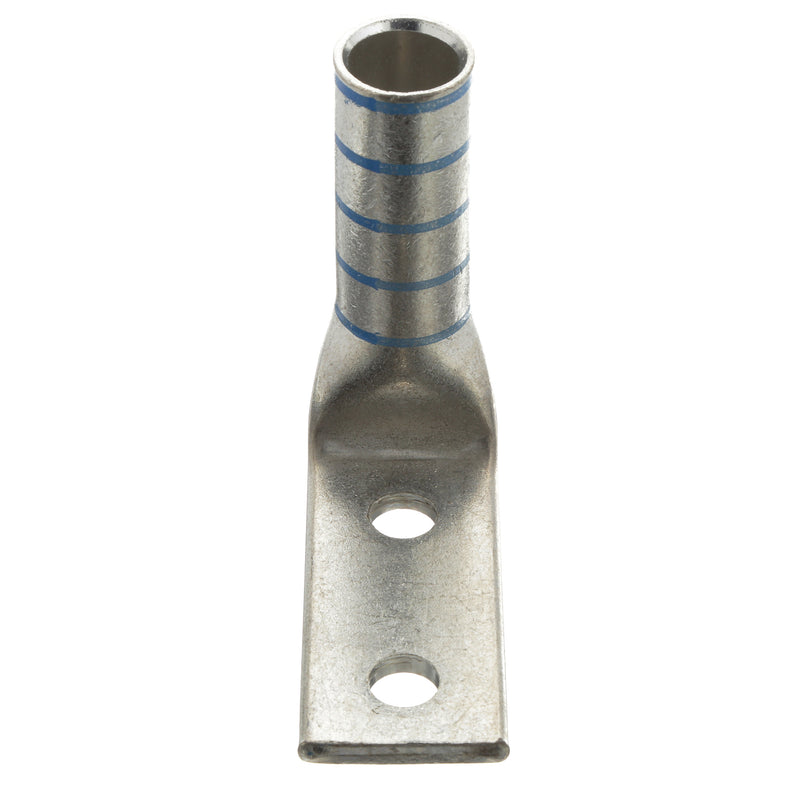

Panduit lugs [LCCX350-12F-6], PAD936

Name: Panduit lugs [LCCX350-12F-6], PAD936
Brand: Panduit
SKU: PAD936
Availability: InStock

Mã kho: PAD936

Mã nhà sản xuất: LCCX350-12F-6

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

Two-hole, flex lug, long barrel, 350 kcmil cable, 1/2 stud hole, 1.75 hole spacing, 90° angle tongue.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	2.5
Barrel Length (mm)	63.5
Tongue Type	Standard
Tongue Width (In.)	1.54
Tongue Width (mm)	39.1
Tongue Thickness (In.)	0.22
Tongue Thickness (mm)	5.6
Overall Length (In.)	4.31
Overall Length (mm)	109.5
Color Code	Blue
Panduit Die Index Number	P76
Burndy Die Index Number	19
Wire Strip Length (In.)	2.56
Wire Strip Length (mm)	65
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
