Panduit lugs [LCCXN500-12-6], PAE009

Name: Panduit lugs [LCCXN500-12-6], PAE009
Brand: Panduit
SKU: PAE009
Price: 2508200.0 VND
Availability: InStock

Mã kho: PAE009

Mã nhà sản xuất: LCCXN500-12-6

Tên nhà sản xuất: Panduit

2.508.200₫ - 2.508.200₫

2.508.200₫

2.508.200₫ - 2.508.200₫

2.508.200₫

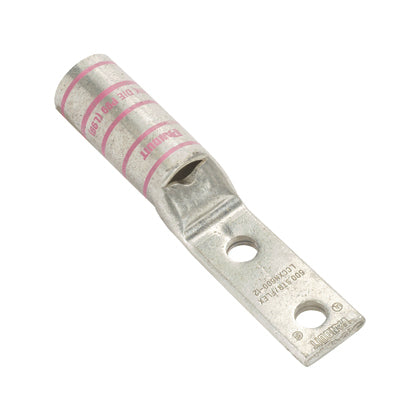

Two-hole, flex lug, long barrel, narrow tongue, 500 kcmil cable, 1/2 stud hole, 1.75 hole spacing.

Product Type	Compression Connectors - Lugs
Stud Hole Size (In.)	1/2
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Tongue Type	Standard
Tongue Thickness (In.)	0.32
Tongue Thickness (mm)	8.1
Tongue Width (In.)	1.3
Tongue Width (mm)	33
Overall Length (In.)	6.71
Overall Length (mm)	170.4
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	2.88
Barrel Length (mm)	73.2
Sub Brand	Pan-Lug
Wire Strip Length (In.)	2.94
Wire Strip Length (mm)	74.6
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps.
