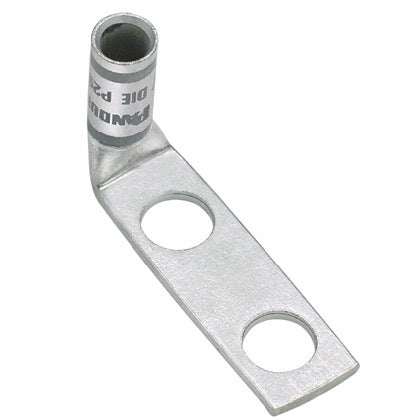

Panduit lugs [LCD3/0-56DF-X], PAC749
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| _THÔNG SỐ KỸ THUẬT: | |
|---|---|
| Copper Conductor Size (kcmil) | 168 |
| Copper Conductor Size (AWG) | 3/0 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Stud Hole Size (In.) | 42.491 |
| Stud Hole Size (mm) | 7.9 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (mm) | 29 |
| Barrel Length (In.) | 1.14 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Thickness (mm) | 3.3 |
| Tongue Thickness (In.) | 0.13 |
| Overall Length (mm) | 67.8 |
| Overall Length (In.) | 2.67 |
| Color Code | Orange |
| Panduit Die Index Number | P50 |
| Burndy Die Index Number | 14 |
| Wire Strip Length (mm) | 30.2 |
| Wire Strip Length (In.) | 1.19 |
| Sub Brand | Pan-Lug |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
